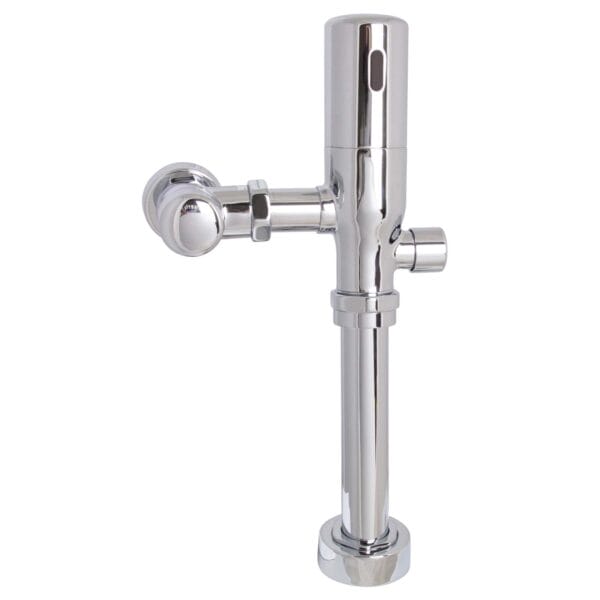

SensorFlo Exposed Sensor Wired Water Closet Flushometer, 1.60 GPF

SKU SV-4116 Categories Flushometers & Accessories, Plumbing, Water Closet Flushometer

Hardwired Sensor Wash Closet Piston Flushometer, 1.60GPF

Commercial-grade, built-to-last chloramine-resistant components
1” NPT check-stop, adjustable with flat-tipped screwdriver
1-1/2″ top spud fixture connection
Manual override button located on side of unit
Hands-free automatic flush provides a cleaner, more sanitary environment
Hardwire Installation provides flush after flush without replacing batteries
Includes battery backup
Battery back up uses 4 standard AAA alkaline batteries which will last for 100,000 cycles for use during power outages
Infrared sensor that detects movement 2 feet away and in a 15 degrees upward sweep
Vandal-resistant: check-stop cap is secured with a set screw
Operating pressure: 20 to 80 PSI (138 to 552 kPa)
Operating temperature: 50 to 110 degreesF (10 to 43 degreesC)

Features and Specifications

Activation type: Sensor
Assembly required: Yes
Battery size:AA
Battery type:Alkaline
Connection size: 1"-11 1/2 NPT Supply, 1 1/2"-11 1/2 NPSM Outlet
Connection type: NPT & NPSM
Country of origin: China
Diverter included: No
Drain included: No
Escutcheon included: Yes
Faucet operation: Sensor
Handle location: Side
Handles included: Yes
Integral stops: No
Massage feature: No
Material composition: Brass/Zinc
Number of batteries: 4
Number of faucet handles: 1
Pause control: No
Power source: AC Powered
Repair part: RPG01-118143
Repair part for catalog: RPG01-118143 - SPUD NUT REPLACEMENT KIT FOR SV-4012, SV-4128, SV-4016, SV-4116
Rough-in valve template included: No
Scald guard included: No
Self-cleaning nozzles: No
Sensor lead: Infrared
Sensor range: 7.87-31.50 (25.59 Factory Set)
Shower arm included: No
Temperature limit control: No
Tools needed for assembly: Slotted screwdriver, smooth-jawed adjustable wrench or pliers wrench (capable of opening to 1.75"), 2.5mm hex key (included), soldering wire and torch (if installing supply piping), hacksaw, pipe reamer, phillips head screwdriver
Valve included: Yes
Valve type: Self-Closing
Vandal resistant: No
Weight: 6.95
Width: 4.57
