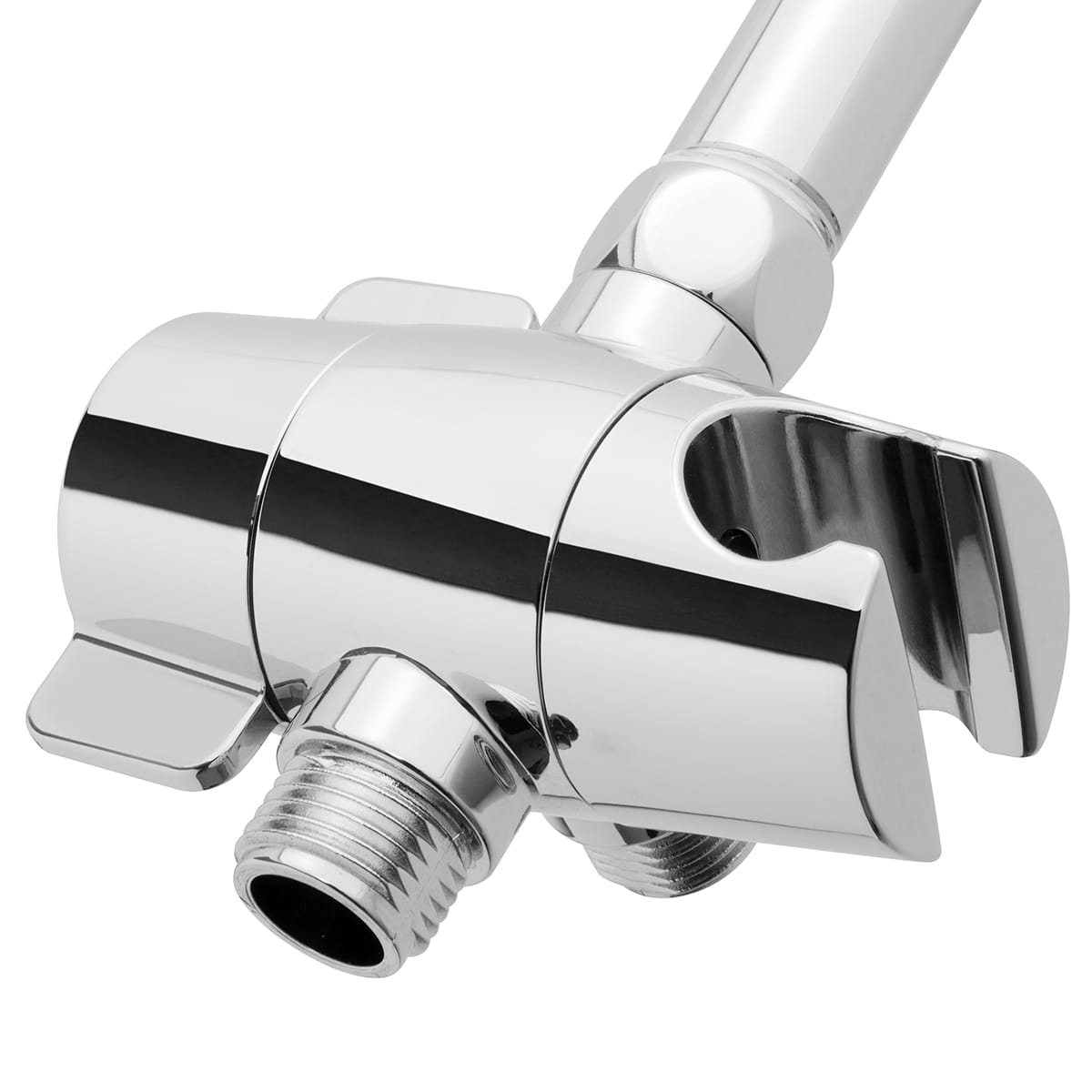

2-Way Shower Diverter

SKU VS-118-1 Categories Shower Accessories, Shower Diverter, Showering

Product finish: No selection

Length: No selection

3.7

Clear

Features and Specifications

Additional information

Weight	67578171 kg
Dimensions	67594172 × 6723697 cm
Product finish	Polished Chrome, Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Nickel
Length	3.7
Collection	Versatile
Installation type	In-Line Mounted

Activation type: Rotate Handle
Assembly required: No

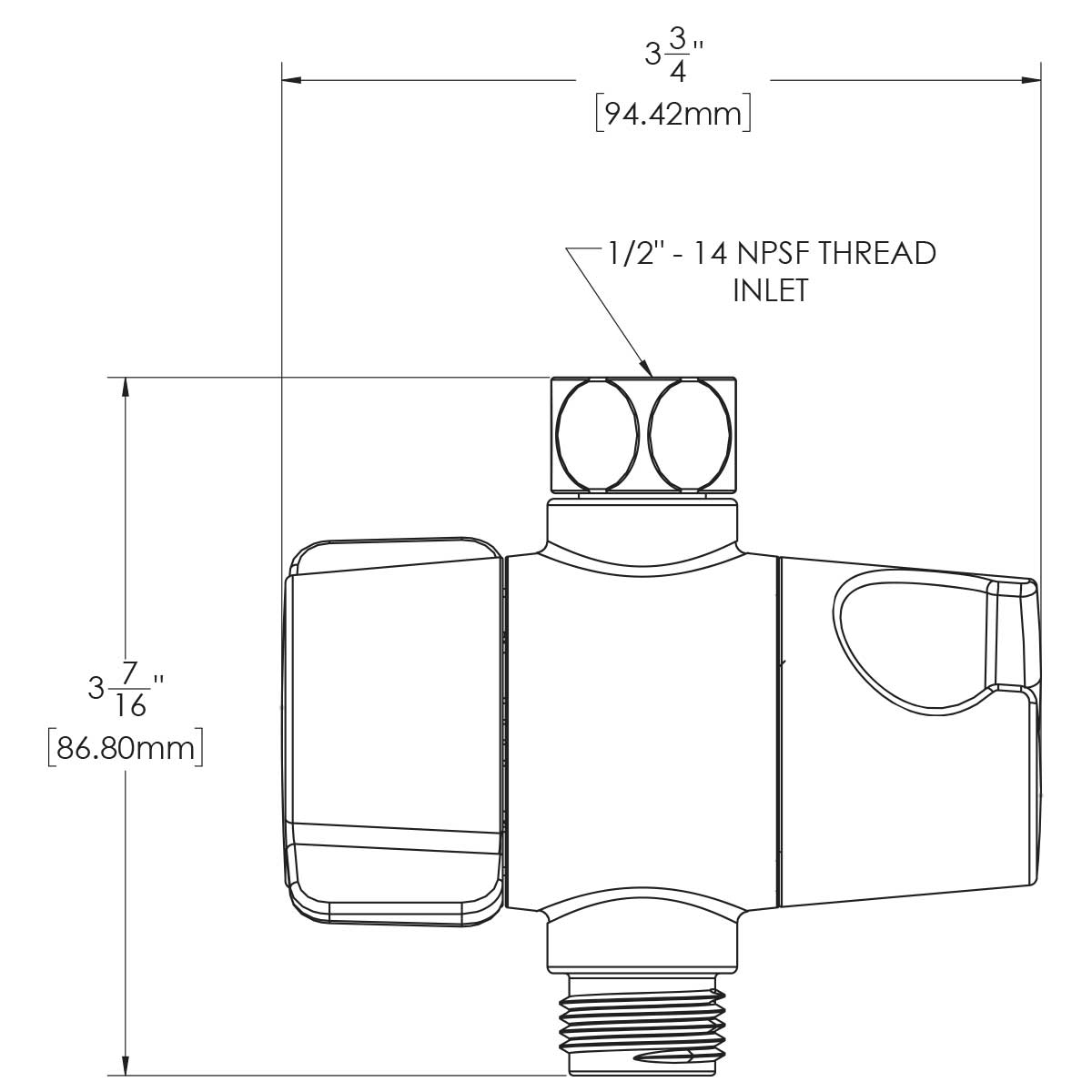

Connection size: 1/2 INCH - 14 NPSM-FM
Connection type: Threaded
Country of origin: China
Diverter included: Yes
Diverter location: Shower Arm
Drain included: No
Escutcheon included: No
Faucet handle style: T-Handle
Handle location: Side
Handles included: Yes
Integral stops: No
Massage feature: No
Material composition: Brass & Plastic
Number of faucet handles: 1
Pause control: No
Replacement item for: VS-114
Rough-in valve template included: No
Scald guard included: No
Self-cleaning nozzles: No
Shower arm included: No
Temperature limit control: No
Tools needed for assembly: Adjustable Wrench, Thread Seal Tape
Valve included: No
Vandal resistant: No
Weight: 0.312
Width: 2.625

Documentation

Instruction manual

Sell Sheet

CAD file - Revit

CAD file - SketchUp

Environmental and compliance

ADA compliant: No
ASME A112.181/CSA B125.1 IAPMO certified: Yes
Cadmium content: No
Chromium content: Yes
Lead content: Yes
Meets ARRA: No
Mercury content: No
