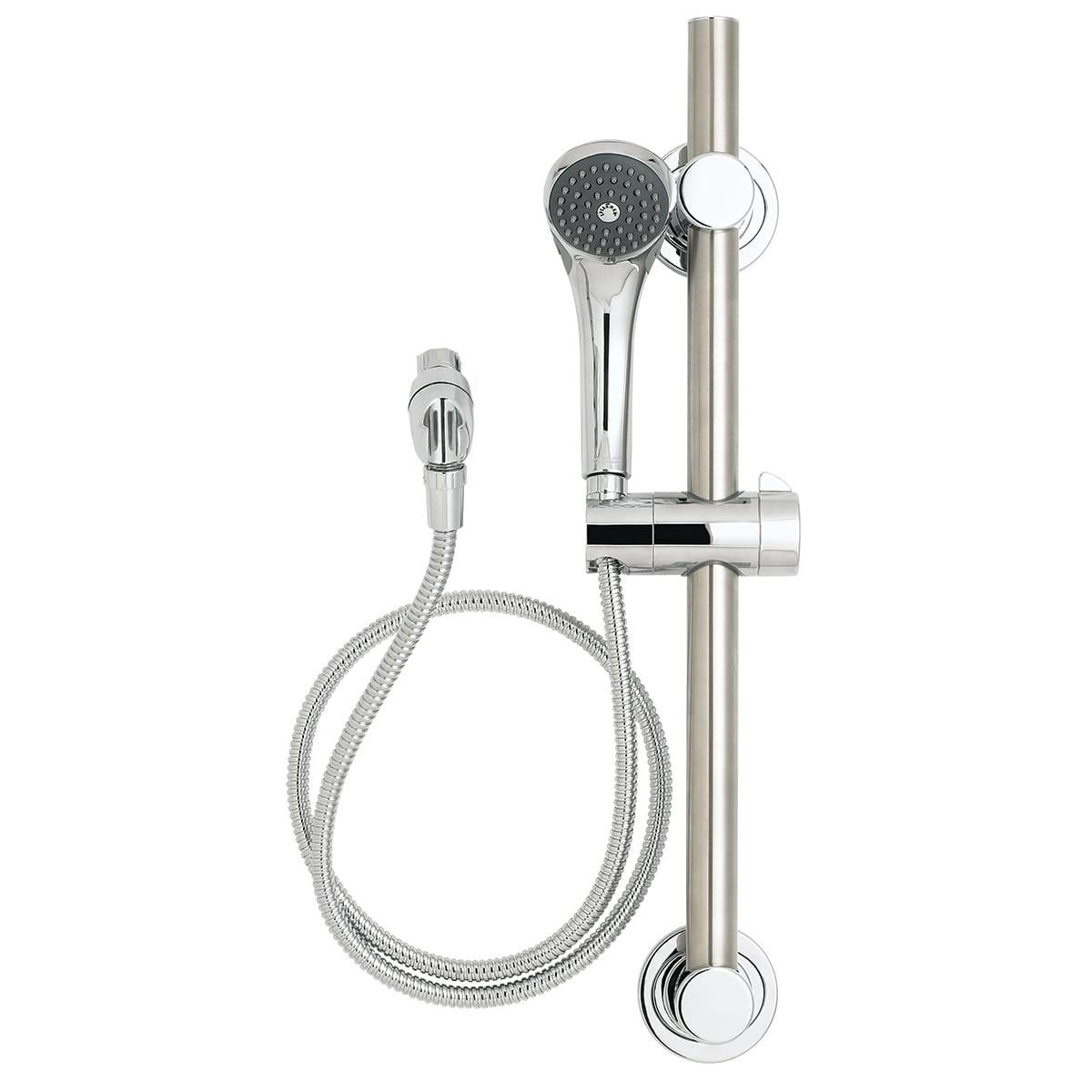

ADA Hand-held shower

SKU VS-1001-ADA-PC Categories , ,

Versatile Polished Chrome ADA Plus Hand-held Shower System is an ideal solution for healthcare applications. The VS-1001-ADA includes a 60 In. metal hose and swivel arm holder. As well as a 24 In. combination slide car/grab bar with stainless steel and chrome finish. The VS-100 hand-held shower includes a push button trickle feature for reducing water flow. The VS-1001-ADA is certified to meet ASME A112.18.1/CSA B125.1 standards.

  • Constructed of lightweight Speakman Engineered Plastic
  • 60 in. Metal hose and mounting bracket included
  • Single function spray setting
  • Consistent spray performance even under low water pressure
  • Easy to install
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome
Flow rate

2.5 GPM
Collection

Product style

Commercial
Number of holes

Spray type

1
Installation type

Shower Arm
Shower function

Single Function
  • Assembly required: No
  • Connection size: 1/2 In. NPTM
  • Connection type: Threaded Pipe
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet operation: Manual
  • Flow type: Spray
  • For use with: G56-0031-PC
  • Handles included: No
  • Hose length in inches: 60.0
  • Integral stops: No
  • Massage feature: No
  • Material composition: Brass, Zinc, Stainless Steel, Plastic
  • Number of jets: 50
  • Number of shower heads: 1
  • Pause control: Yes
  • Products this item repairs: G56-0031-PC
  • Repair part: G56-0031-PC
  • Repair part for catalog: G56-0031-PC - Bnt Vs-82620 Brcket/flow Cntrl
  • Replacement item for: VS-1001-ADA
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: No
  • Shower arm included: Yes
  • Shower head face diameter: 3.13
  • Shower head shape: Round
  • Temperature limit control: No
  • Tools needed for assembly: Adjustable wrench; Teflon tape
  • Type of shower arm: Fixed
  • Valve included: No
  • Vandal resistant: No
  • Weight: 3.6

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • Cadmium content: No
  • CEC certified: No
  • Chromium content: Yes
  • IGC 272 IAPMO certified: No
  • Lead content: Yes
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • Mercury content: No
  • NSF61 IAPMO certified: No
  • Consumer warranty: Limited Lifetime
  • Commercial warranty: 1 Year Limited
