AL-2 Alarm

SKU AL-2 Categories , ,

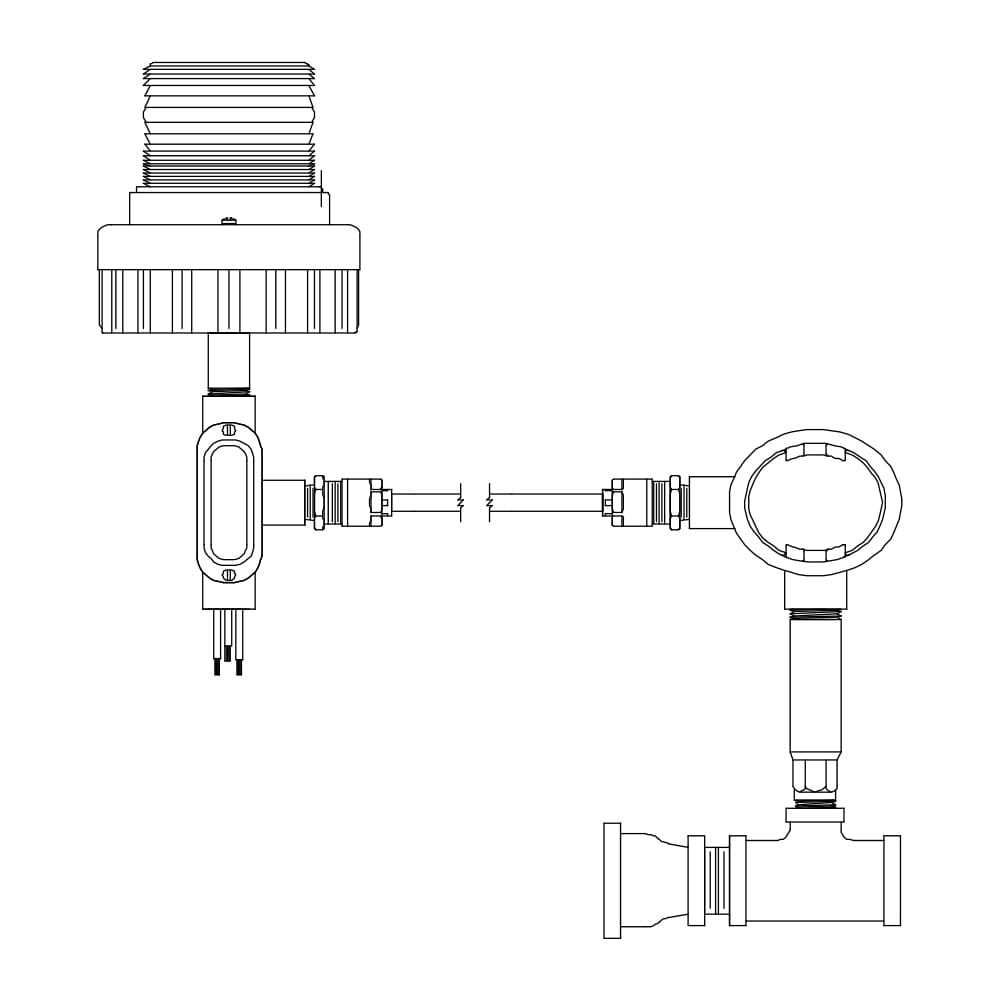

The Speakman AL-2 Alarm is a flow switch activated alarm comes with a flashing light & horn. The unit activates when the flow of water to the fixture is detected. The AL-2 is equipped with visual signals while the emergency fixture is still in operation.

  • Alarm system for safety showers
  • Features electric audio and visual flashing light
  • Includes mounting hardware
  • Unit is activated by a vapor proof flow switch
  • Unit rated for NEMA 3R outdoor/wet locations that are Non-Hazardous
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Grey
Collection

Product style

Industrial
Installation type

Wall or Pipe Mounted
  • Assembly required: No
  • Connection size: 1" NPT FEMALE (WATER INLET) 1-1/4" NPT FEMALE (WAT
  • Connection type: Threaded Pipe
  • Country of origin: United States
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • For use with: 1-1/4 x 1 Bell Reducer
  • Handles included: No
  • Integral stops: No
  • Massage feature: No
  • Material composition: Stainless Steel, Brass, Plastic & Steel
  • Pause control: No
  • Products this item repairs: 05-1835-GAL
  • Repair part: 05-1835-GAL
  • Repair part for catalog: 05-1835-GAL - 1-1/4 x 1 Bell Reducer
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: No
  • Shower arm included: No
  • Temperature limit control: No
  • Tools needed for assembly: PIPE THREAD SEALANT PIPE WRENCH WIRE STRIPPERS WIRE NUTS MOUNTING HARDWARE
  • Valve included: No
  • Vandal resistant: No
  • Weight: 9.6

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: No
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: Yes
  • NSF61 IAPMO certified: No
  • Consumer warranty: 3 Year Limited
  • Commercial warranty: 3 Year Limited
