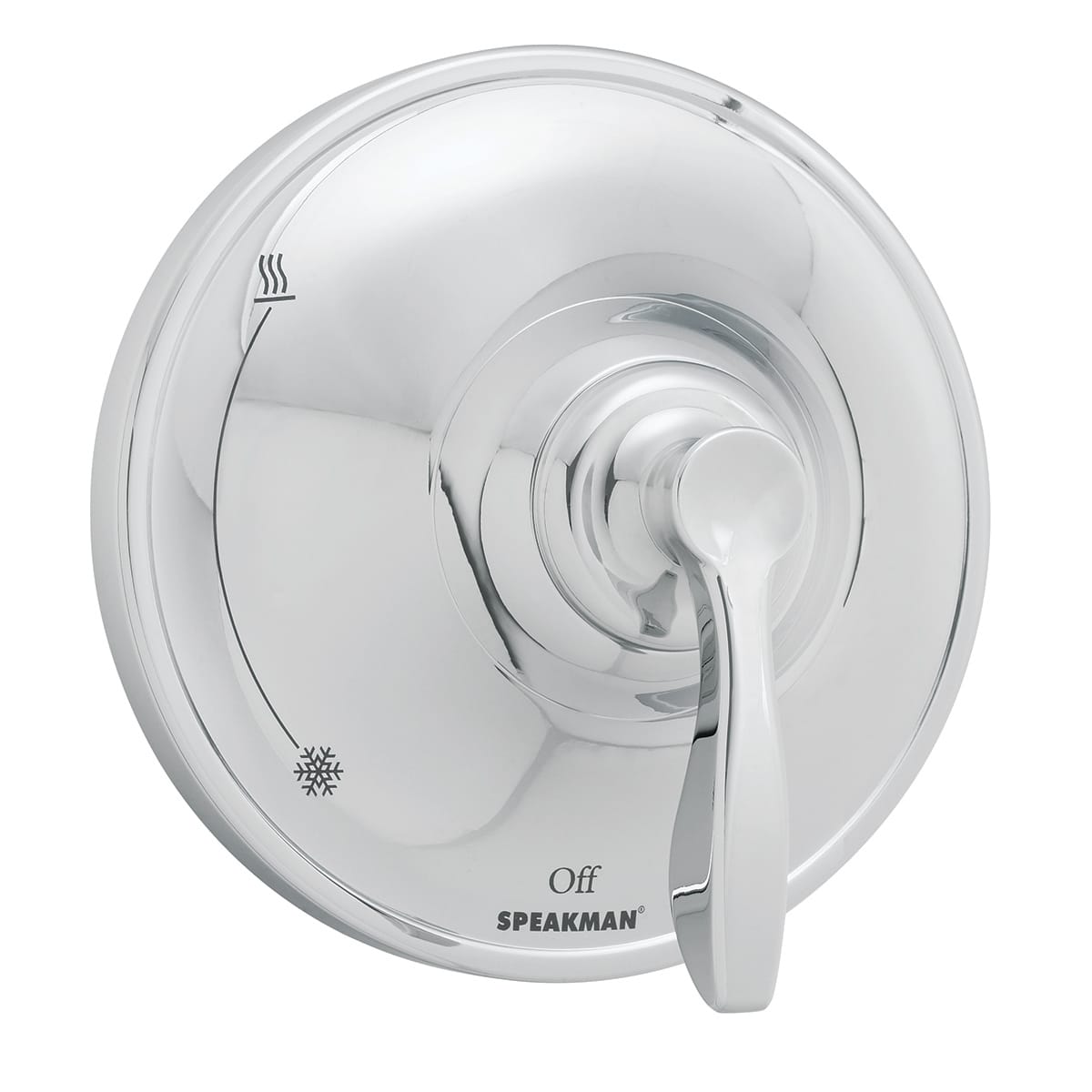

Chelsea Shower Valve and Trim

SKU SM-10000-P-1 Categories Shower Valves and Trims, Showering, Valve and Trims

Product finish: No selection

Flow rate: No selection

2.0 GPM or Higher

Length: No selection

7.0

Clear

Features and Specifications

Additional information

Weight	67578171 kg
Dimensions	67594172 × 6723697 cm
Product finish	Polished Chrome, Brushed Nickel
Flow rate	2.0 GPM or Higher
Length	7.0
Collection	Chelsea
Product style	Transitional
Number of holes	1
Installation type	Wall Mounted

Activation type: Rotate Handle
Assembly required: No
Connection size: 1/2 In.
Connection type: NPT and Sweat/Solder
Country of origin: China
Diverter included: No
Drain included: No
Escutcheon included: Yes
Faucet handle style: Lever
Faucet operation: Manual
For use with: Chelsea SM-10010-P Shower System Combination
Handle location: Center of Valve
Handles included: Yes
Integral stops: Yes
Massage feature: Yes
Material composition: Plastic & Zinc
Number of faucet handles: 1
Pause control: No
Products this item repairs: SM-10010-P
Rough-in valve template included: Yes
Scald guard included: Yes
Self-cleaning nozzles: No
Shower arm included: No
Temperature limit control: Yes
Tools needed for assembly: Screw Driver, Torch, Flux, Solder
Valve included: Yes
Valve type: Pressure Balance
Vandal resistant: No
Weight: 3.53
Width: 7.0

Documentation

Instruction manual

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

Environmental and compliance

ADA compliant: Yes
ASME A112.181/CSA B125.1 IAPMO certified: Yes
IGC 272 IAPMO certified: No
Low lead law IAPMO certified: No
Meets ARRA: No
NSF61 IAPMO certified: No

Warranty information
