BACK TO SEARCH

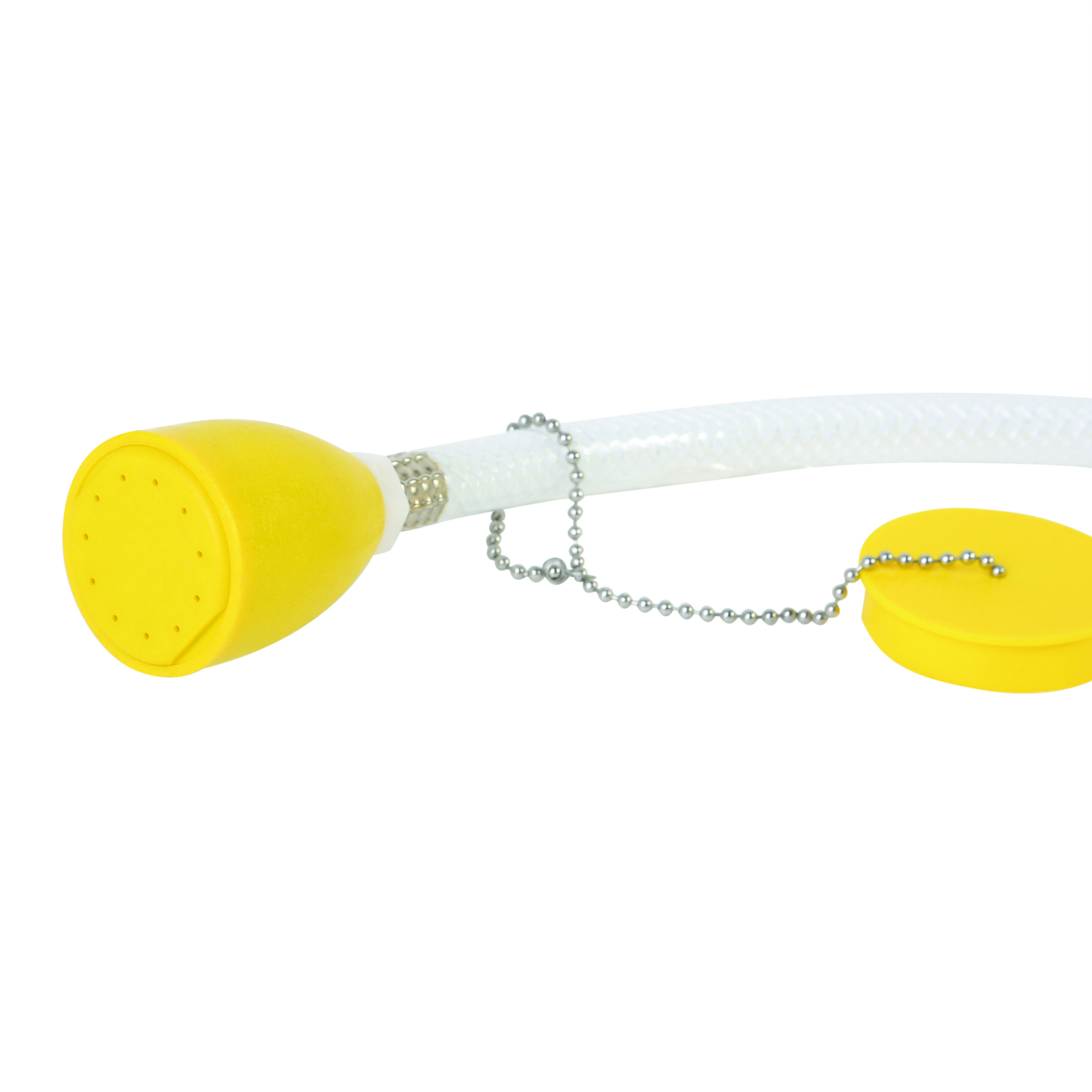

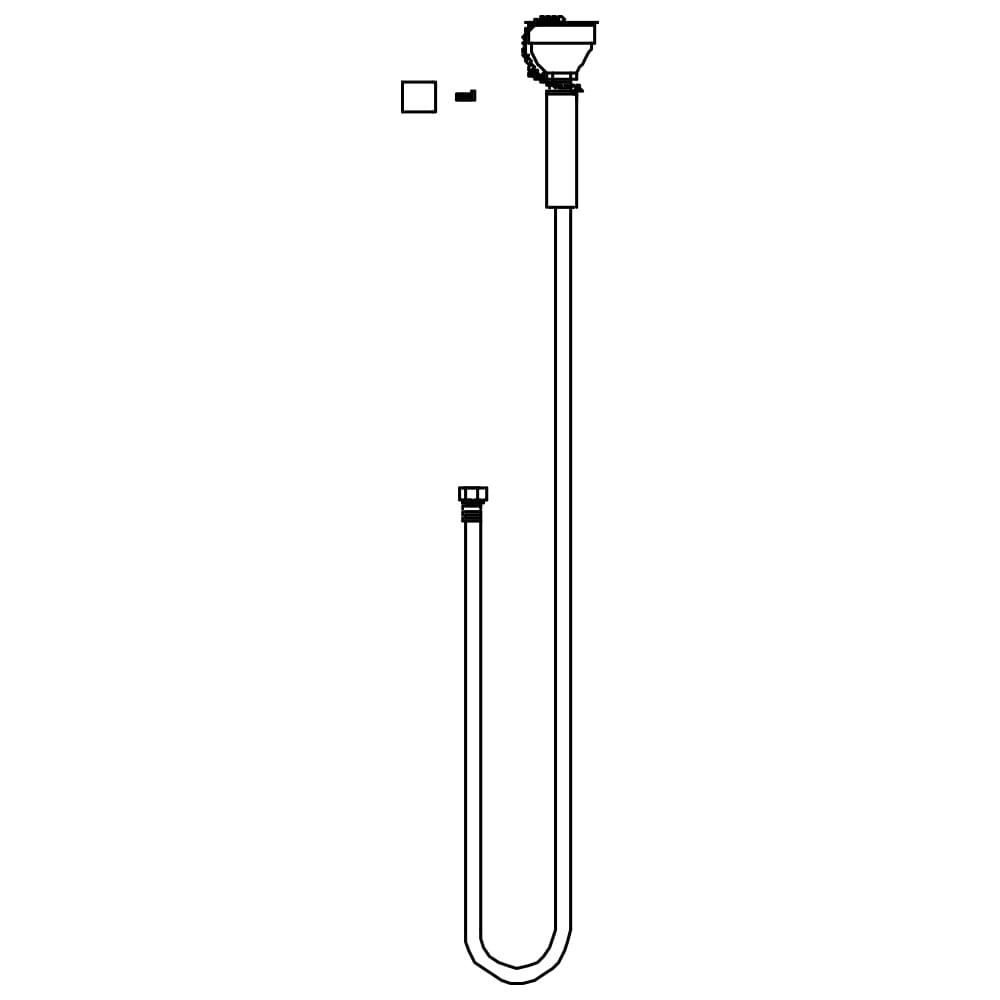

GravityFlo SE-4920 Drench Hose Attachment

SKU SE-4920 Categories ,

The Speakman GravityFlo SE-4920 Drench Hose Attachment is a drench hose attachment for use with Speakman portable GravityFlo portable units. The SE-4920 allows for spot body washing in addition to the units eyewash flushing capability.

  • Drench hose attachment

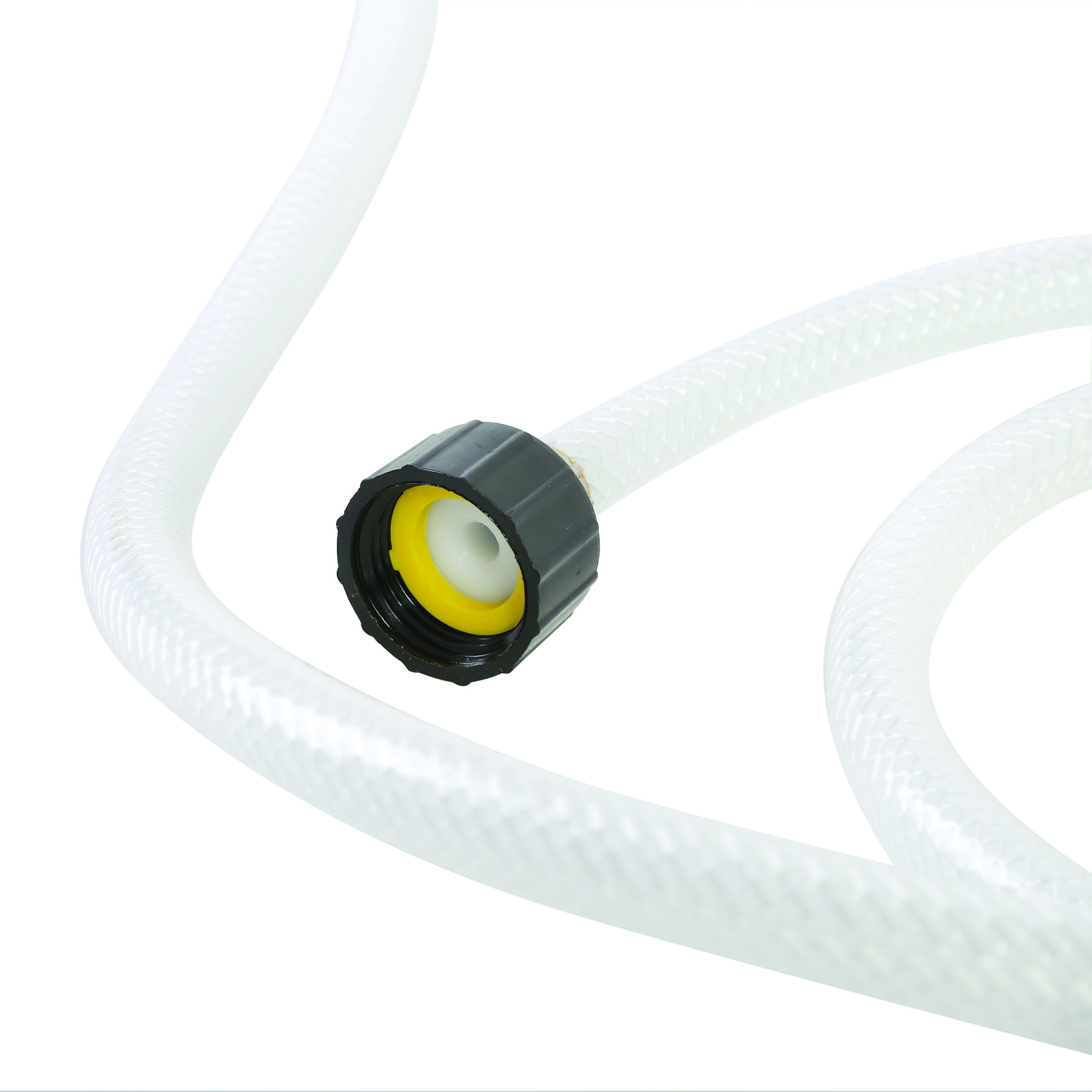

  • Vinyl, reinforced hose
  • Compatible with SE-4000 & SE-4300
  • Elastomeric pull-strap activator
  • Shelf or wall mounted design
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

White/Chrome
Flow rate

0.4 GPM for 15+ minutes
Length

2.0
Collection

Product style

Industrial
Installation type

Tank Mounted
  • Activation type: Pull
  • Assembly required: No
  • Connection size: 3/4" GHT
  • Connection type: GHT
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • For use with: GravityFlo SE-4300 Portable Eyewash with Drench Hose
  • Handles included: No
  • Hose length in inches: 75.25
  • Integral stops: No
  • Massage feature: No
  • Material composition: Plastic & Metal
  • Pause control: No
  • Products this item repairs: SE-4300
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: No
  • Shower arm included: No
  • Special features: Hose Included
  • Temperature limit control: No
  • Valve included: No
  • Vandal resistant: No
  • Weight: 2.0
  • Width: 2.0

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: No
  • ANSI Z358.1 IAPMO certified:No
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • NSF61 IAPMO certified: No
  • Consumer warranty: 3 Year Limited
  • Commercial warranty: 3 Year Limited
