Handicap Shower Coination

SKU VS-2054 Categories , ,

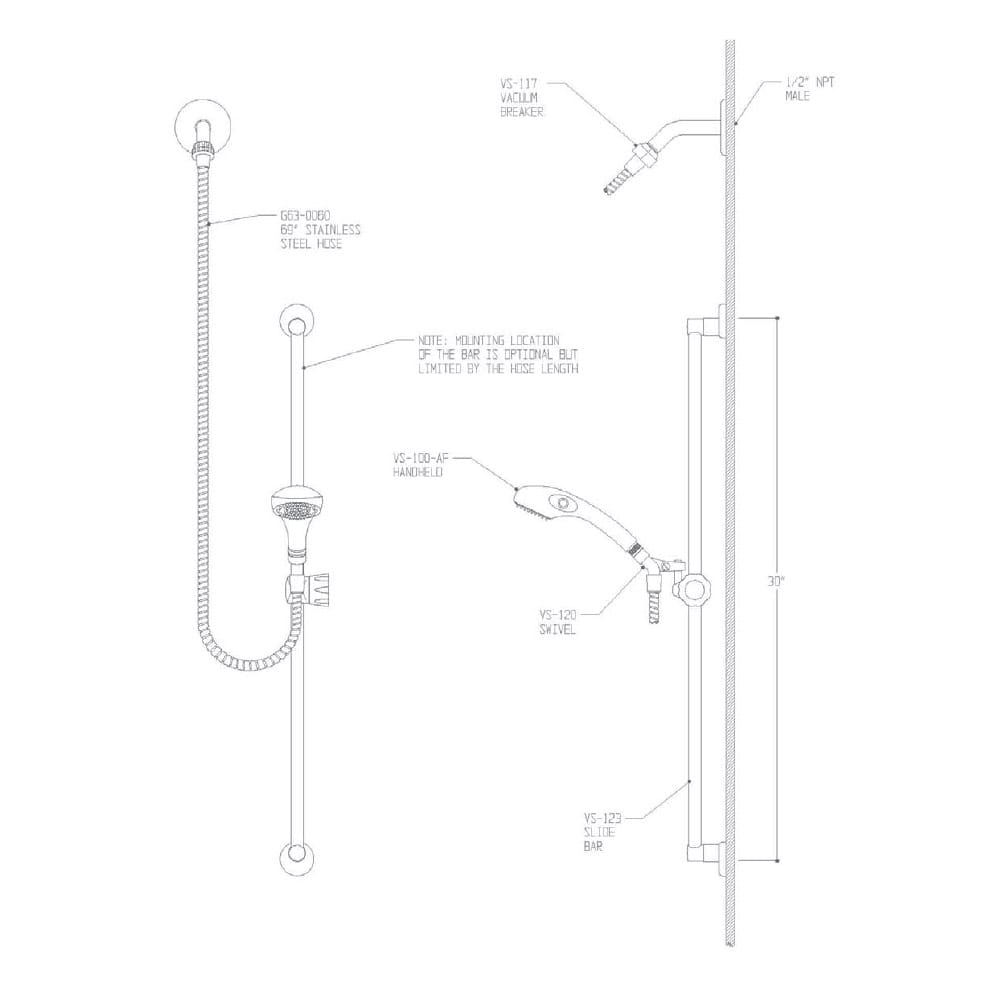

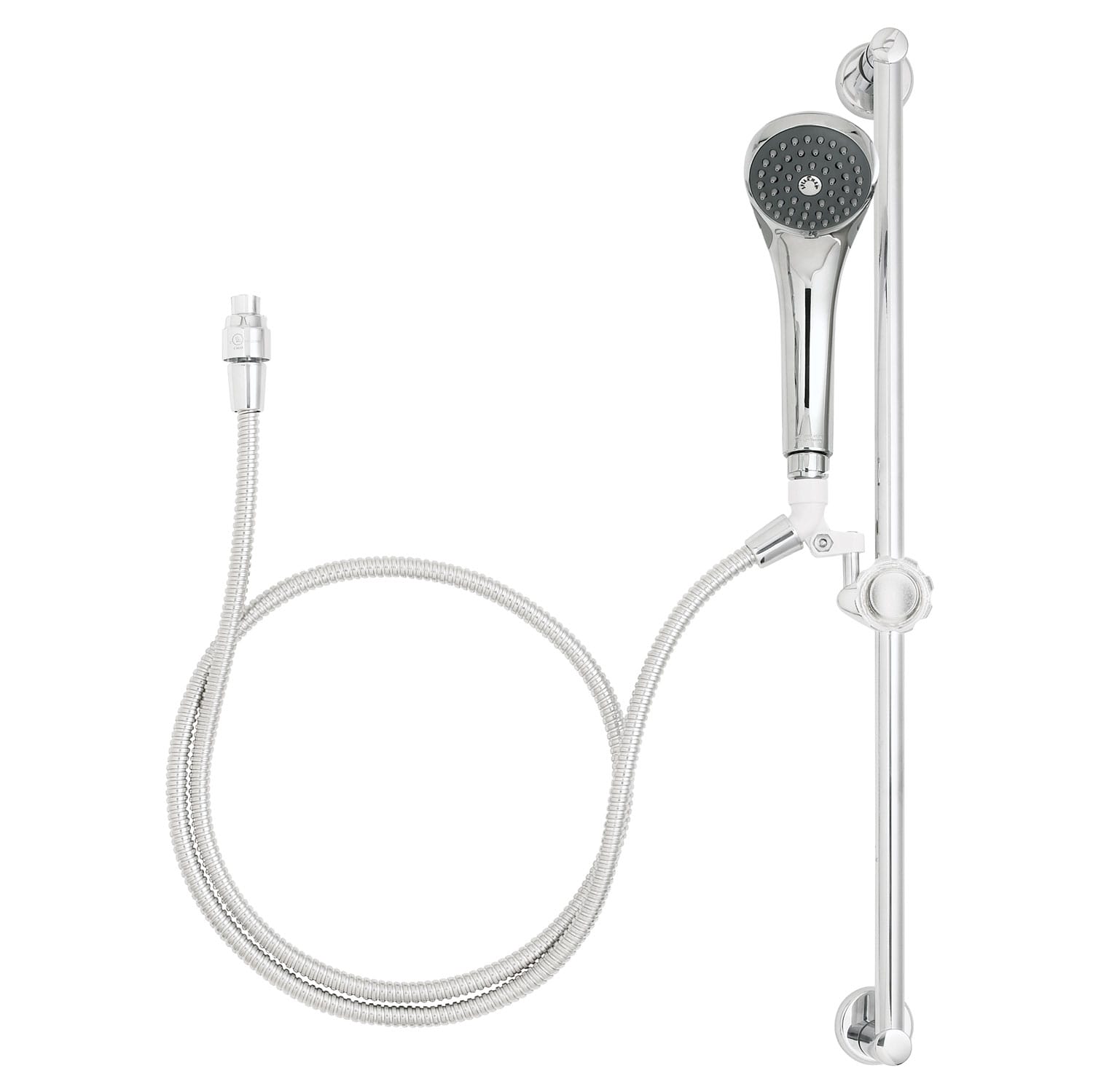

The VS-2054 is a handicap shower combination which includes a hand-held shower with a 69 In. rubber lined steel hose, vacuum breaker, swivel connector and 30 In. Slide bar

  • Features a powerful, single function spray hand shower
  • Hand shower features integral thumb operated pause/trickle non-positive shut-off
  • Includes 69-inch metal hose, vacuum breaker and mounting bracket
  • 30 In. slide bar and swivel connector allows for wide range of hand shower height adjustability
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome
Flow rate

2.5 GPM
Collection

Product style

Commercial
Number of holes

Spray type

1
Installation type

Wall Mounted
Shower function

Single Function
  • Activation type: Rotate Handle
  • Assembly required: No
  • Connection size: 1/2 In. NPSM
  • Connection type: Threaded Pipe
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet operation: Manual
  • Flow type: Spray
  • For use with: 69IN LONG METAL S/S H
  • Handles included: No
  • Hose length in inches: 69.0
  • Integral stops: No
  • Massage feature: No
  • Material composition: Stainless Steel & Plastic
  • Number of jets: 50
  • Number of shower heads: 1
  • Pause control: Yes
  • Products this item repairs: G63-0060
  • Repair part: G63-0060
  • Repair part for catalog: G63-0060 - 69IN LONG METAL S/S H
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: No
  • Shower arm included: No
  • Shower head face diameter: 3.13
  • Shower head shape: Round
  • Temperature limit control: No
  • Tools needed for assembly: Adjustable wrench; teflon tape, Screw driver
  • Valve included: No
  • Vandal resistant: No
  • Weight: 3.6

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • CEC certified: No
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • NSF61 IAPMO certified: No
  • State restrictions: CA, HI, OR, WA, CO, MA, NJ, NY, RI VT, MD
  • Consumer warranty: Limited Lifetime
  • Commercial warranty: 5 Year Limited
