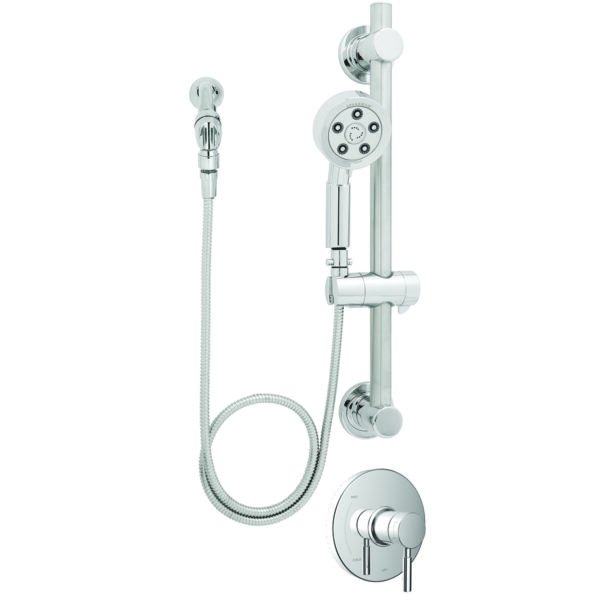

Neo ADA Shower Grab Bar

SKU SM-1080-ADA-PE2 Categories , ,

Our Neo ADA Shower Combination has been intricately designed for performance and reliability. The included Neo Hand Shower features 50 customizable sprays that can be effortlessly adjusted by simply rotating the faceplate. The included grab bar is precision engineered to comply with the ADA’s 250-pound pull requirement when installed properly. The grab bar also allows you to position the hand shower at your desired height. Available in an assortment of finishes and includes a coordinated pressure balance valve and shower arm.

  • Pressure balance valve regulates water temperature and pressure
  • Includes 60 in. metal hose and coordinating shower arm and flange
  • Features an ADA compliant 24 in. grab bar and pause/trickle adapter
  • Easily installs into standard U.S. plumbing connections
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome
Flow rate

2.0 GPM
Collection

Product style

Modern
Number of holes

Spray type

3
Installation type

Wall Mounted
Shower function

Multifunction
  • Activation type: Rotate Handle
  • Assembly required: Yes
  • Connection size: 1/2 In. NPTF; NPTM
  • Connection type: Threaded Pipe
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: Yes
  • Faucet handle style: Lever
  • Faucet operation: Manual
  • Flow type: Aerated
  • For use with: Neo S-1558 Diverter Tub Spout
  • Handle location: Center of Valve
  • Handles included: Yes
  • Hose length in inches: 60.0
  • Integral stops: Yes
  • Massage feature: Yes
  • Material composition: Brass, Plastic, Zinc
  • Number of faucet handles: 1
  • Number of jets: 5
  • Number of shower heads: 1
  • Pause control: Yes
  • Products this item repairs: S-1558
  • Repair part: S-1558
  • Repair part for catalog: S-1558 - Speakman Neo S-1558 Diverter Tub Spout
  • Rough-in valve template included: Yes
  • Scald guard included: Yes
  • Self-cleaning nozzles: Yes
  • Shower arm included: Yes
  • Shower head face diameter: 4.0
  • Shower head shape: Round
  • Spout height in inches: 2.66
  • Spout length in inches: 5.75
  • Temperature limit control: Yes
  • Tools needed for assembly: Screw Driver, Torch, Flux, Solder
  • Type of shower arm: Fixed
  • Valve included: Yes
  • Valve type: Pressure Balance
  • Vandal resistant: No
  • Weight: 8.5

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • CEC certified: No
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • NSF61 IAPMO certified: No
  • State restrictions: CA, HI, OR, WA, CO, MA, NJ, NY, RI VT, MD
  • Consumer warranty: Limited Lifetime
  • Commercial warranty: 5 Year Limited
