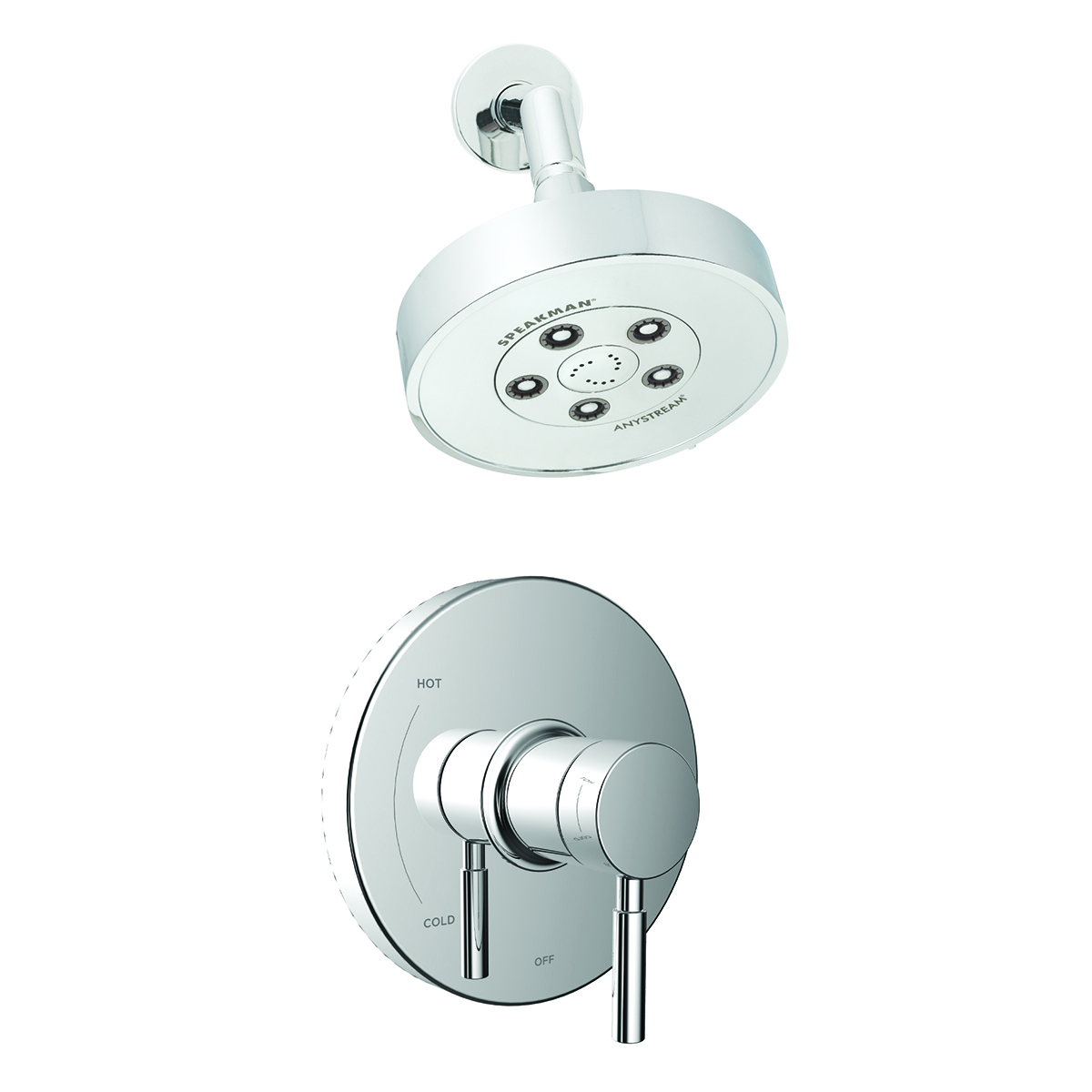

Neo Shower System Combination

SKU SM-1010-P-E2 Categories , ,

Speakman’s Neo Shower System Combination completes the bathroom by adding bold style to a sleek look. The Neo brings forth a modern design of smooth details and sharp edges. Signifying simplistic, yet impactful, design; the Neo Shower System Combination pairs with the Neo collection of faucets and other bathroom accessories to identify modern luxury in any bathroom.
The Neo Shower System Combination exemplifies Speakman’s quality standard through uniting its anti-scald pressure valve (SM- 1000-P); Neo fixed showerhead (S-3010); and the Neo showerarm and flange (S-2540). The Neo bathroom suites collection is offered in Polished Chrome, Brushed Nickel, and Polished Nickel finishes.

  • Neo™ Collection Shower and Valve Combination System for a complete, cohesive shower design
  • Includes Neo fixed Anystream® shower head equipped with Anystream® technology to deliver versatile sprays
  • Pressure balance diverter valve regulates water temperature and pressure
  • Includes Neo Collection coordinating shower arm and flange
  • Easily installs into standard U.S. plumbing connections
  • Same quality grade as used in hotels
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome
Flow rate

2.5 GPM
Collection

Product style

Modern
Number of holes

Spray type

3
Installation type

Wall Mounted
Shower function

Multifunction
  • Activation type: Rotate Handle
  • Assembly required: No
  • Connection size: 1/2 In. NPTF; NPTM
  • Connection type: Threaded Pipe
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: Yes
  • Faucet handle style: Lever
  • Faucet operation: Manual
  • Flow type: Aerated
  • Handle location: Center of Valve
  • Handles included: Yes
  • Integral stops: Yes
  • Massage feature: Yes
  • Material composition: Brass, Plastic, Zinc
  • Number of faucet handles: 1
  • Number of jets: 5
  • Number of shower heads: 1
  • Pause control: No
  • Rough-in valve template included: Yes
  • Scald guard included: Yes
  • Self-cleaning nozzles: Yes
  • Shower arm included: Yes
  • Shower head face diameter: 5.5
  • Shower head shape: Round
  • Temperature limit control: Yes
  • Tools needed for assembly: Screw Driver, Torch, Flux, Solder
  • Type of shower arm: Fixed
  • Valve included: Yes
  • Valve type: Pressure Balance
  • Vandal resistant: No
  • Weight: 5.7

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • CEC certified: No
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • NSF61 IAPMO certified: No
  • State restrictions: CA, HI, OR, WA, CO, MA, NJ, NY, RI VT, MD
  • Consumer warranty: Limited Lifetime
  • Commercial warranty: 5 Year Limited
