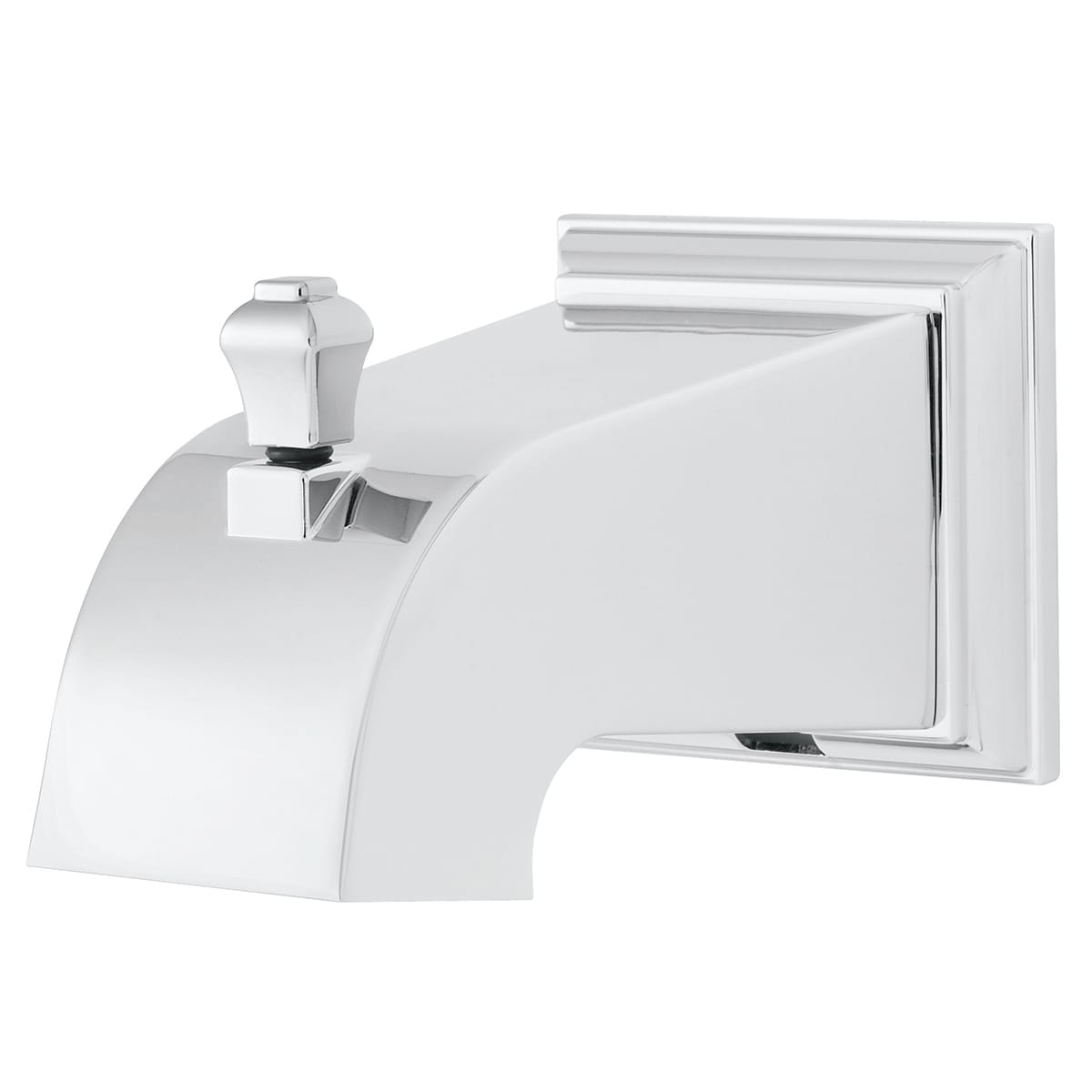

Rainier Diverter Tub Spout

SKU S-1564 Categories Diverter Tub Spouts, Shower Valves and Trims, Showering

Our Rainier Diverter Tub Spout S-1564 features a unique, square frame constructed entirely of durable, solid metal. The Rainier is engineered with our slip-fit connection to make installation effortless. Available in a corrosion-resistant Polished Chrome finish to coordinate with other members of the Rainier Collection.

Solid metal construction
1/2 in slip-fit connection
5.89-inches in length

Features and Specifications

Additional information

Weight	67578171 kg
Dimensions	67594172 × 6723697 cm
Product finish	Polished Chrome
Length	5.88
Collection	Rainier
Product style	Traditional
Number of holes	1
Installation type	Wall Mounted

Activation type: Lift
Assembly required: No
Connection size: 1/2 In. copper
Connection type: Slip-fit
Country of origin: China
Diverter included: Yes
Diverter location: Tub Spout
Drain included: No
Escutcheon included: No
Faucet handle style: Knob
Faucet operation: Manual
For use with: Rainier SM-8030-P Shower and Tub Combination
Handle location: Top
Handles included: Yes
Integral stops: No
Massage feature: No
Material composition: Zinc
Number of faucet handles: 1
Pause control: No
Products this item repairs: SM-8030-P
Rough-in valve template included: No
Scald guard included: No
Self-cleaning nozzles: No
Shower arm included: No
Spout height in inches: 2.96
Spout length in inches: 5.88
Temperature limit control: No
Tools needed for assembly: Adjustable wrench; Teflon tape
Valve included: Yes
Vandal resistant: No
Weight: 1.18
Width: 2.96

Documentation

Instruction manual

CAD file - Revit

CAD file - SketchUp

Environmental and compliance

ADA compliant: No
ASME A112.181/CSA B125.1 IAPMO certified: Yes
Cadmium content: No
CEC certified: Yes
Chromium content: Yes
IGC 272 IAPMO certified: No
Lead content: Yes
Low lead law IAPMO certified: No
Meets ARRA: No
Mercury content: No
NSF61 IAPMO certified: No

Warranty information
