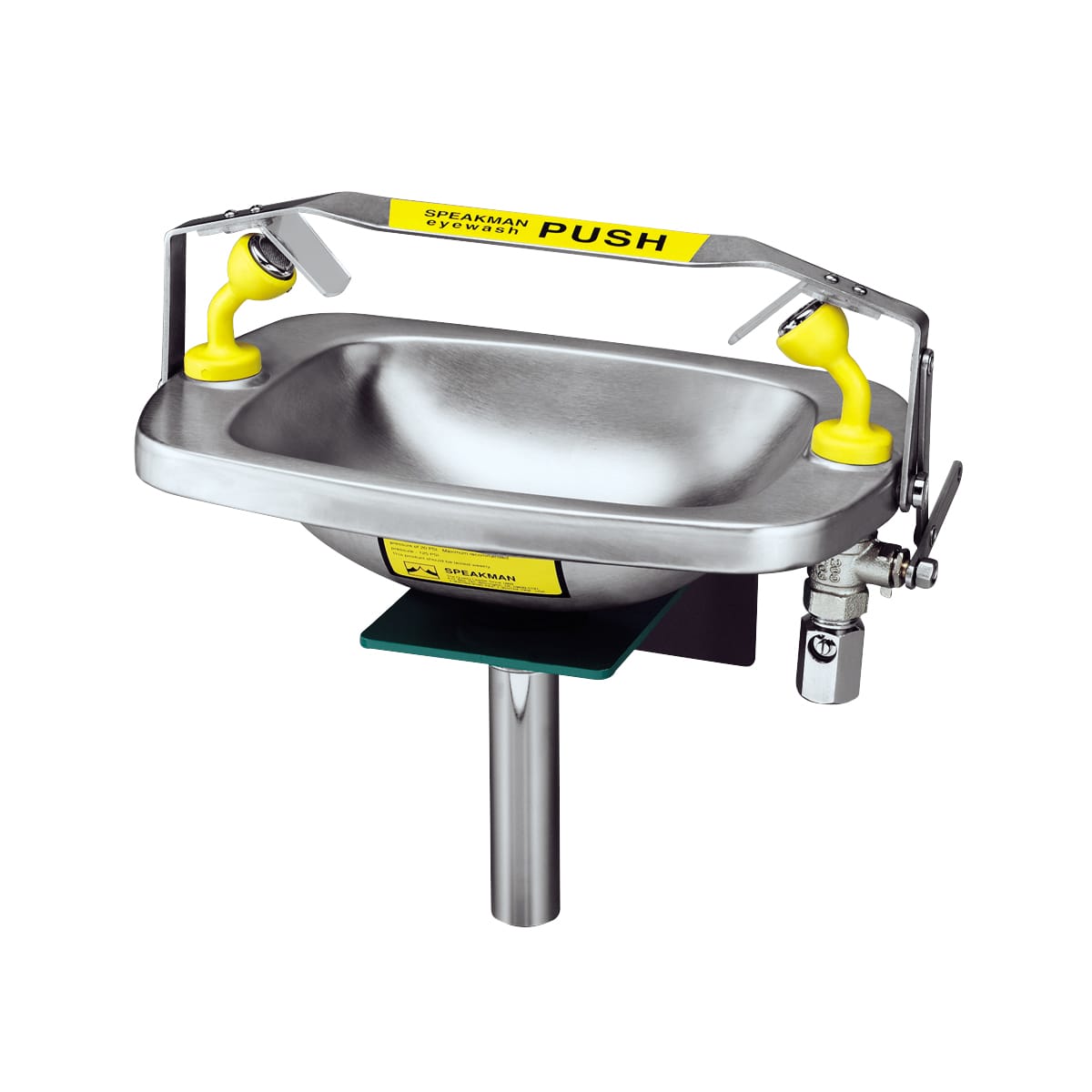

Select Series SE-505 Eyewash Stainless Steel Bowl Wall Mount System

SKU SE-505 Categories , ,

Speakman Select Series emergency eye washes feature a unique panic bar activator on top of the unit, making them easy to find and allows for either right or left hand activation. The soft aerated sprays allow users to comfortably flush their eyes for the ANSI recommended 15 minutes. The Speakman Select Series SE-505 Eyewash Stainless Steel Bowl Wall Mount System is compliant to the ANSI/ISEA Z358.1 standard.

  • Wall mounted installation
  • Dual aerated spray heads
  • Rectangular stainless steel bowl
  • Trigger bar activation
  • 3.0 gpm at 30 psi
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Stainless Steel
Flow rate

2.8 GPM @ 30 PSI
Length

13.88
Collection

Product style

Industrial
Installation type

Wall Mounted
  • Activation type: Push
  • Assembly required: No
  • Bowl material: Stainless Steel

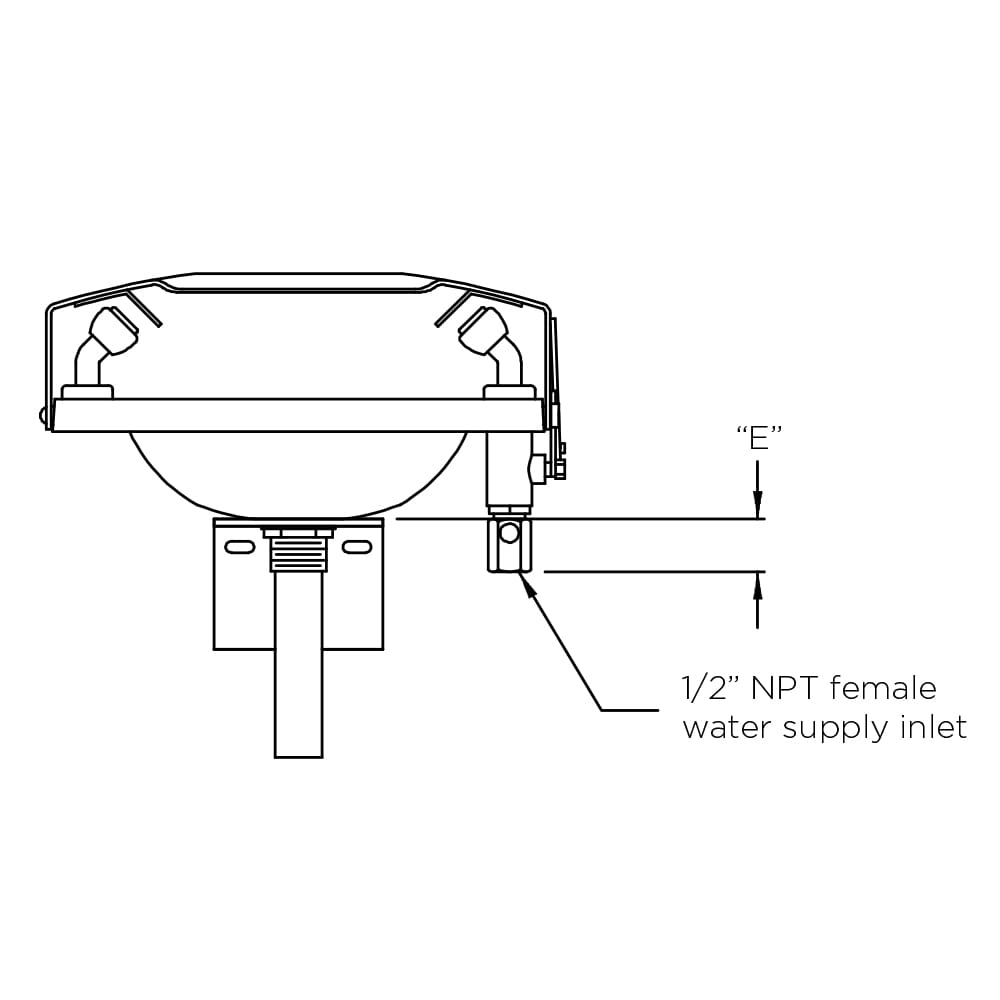

  • Connection size: 1/2" NPT Female
  • Connection type: Threaded Pipe
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet handle style: Trigger Bar
  • Flow type: Aerated
  • For use with: Repair Part RPG05-0817 Hydrant repair parts
  • Handle location: Top
  • Handles included: Yes
  • Integral stops: No
  • Massage feature: No
  • Material composition: Stainless Steel, Brass, Plastic & Steel
  • Number of faucet handles: 1
  • Pause control: No
  • Products this item repairs: RPG05-0817
  • Repair part: RPG05-0817
  • Repair part for catalog: RPG05-0817 - Speakman Repair Part RPG05-0817 Hydrant repair parts
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: Yes
  • Shower arm included: No
  • Temperature limit control: No
  • Tools needed for assembly: Pencil, Drill, Tape Measure, Level, Pipe Wrench, Crescent Wrench, Screwdriver, Thread Sealant, Mount
  • Valve included: Yes
  • Valve type: Ball Valve
  • Vandal resistant: No
  • Weight: 9.46
  • Width: 14.0

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: No
  • ANSI Z358.1 IAPMO certified:Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • Cadmium content: No
  • Chromium content: Yes
  • IGC 272 IAPMO certified: No
  • Lead content: Yes
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • Mercury content: No
  • NSF61 IAPMO certified: No
  • Consumer warranty: 3 Year Limited
  • Commercial warranty: 3 Year Limited
