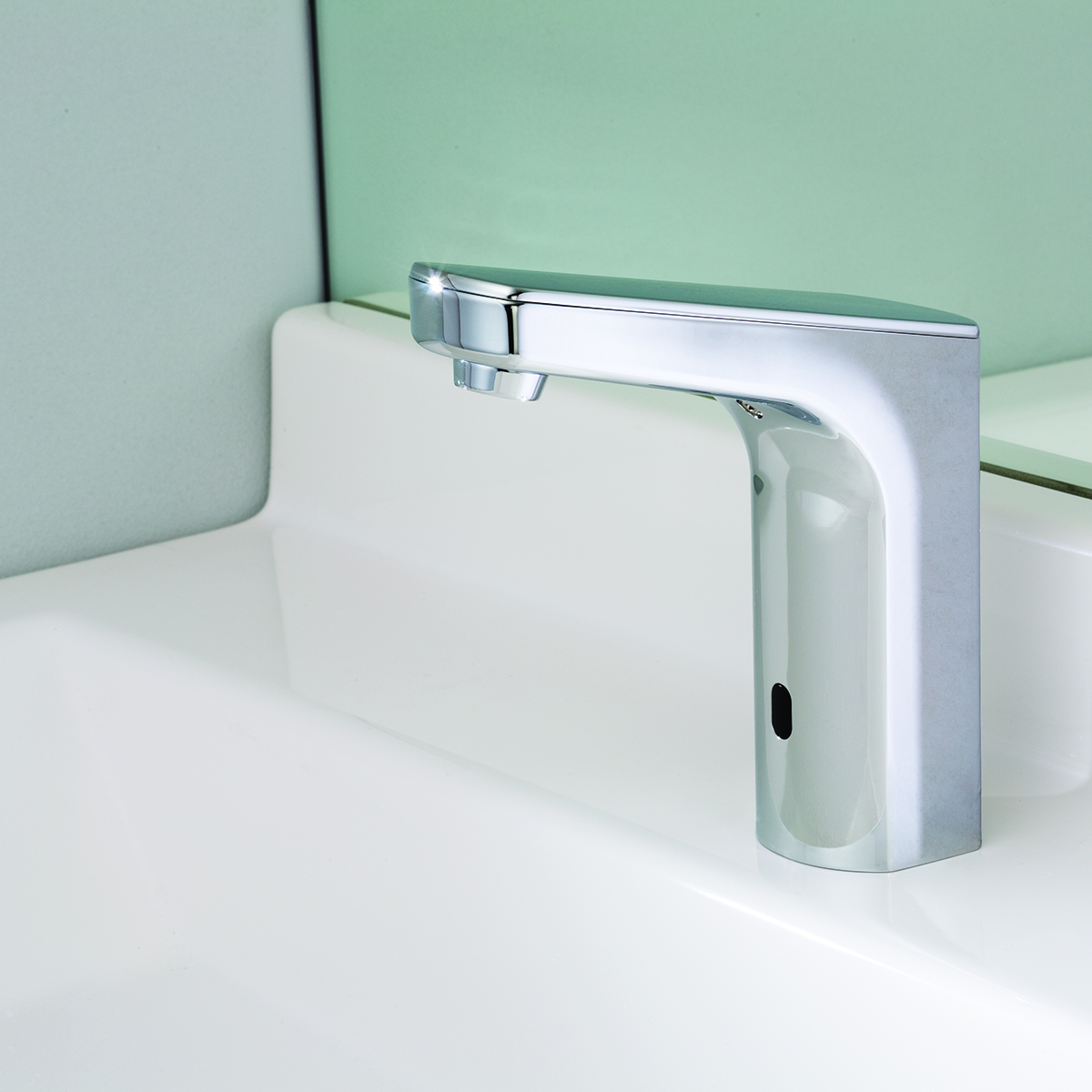

Sensorflo Battery-Powered Sensor Faucet with TMV

A sleek design in a highly functional package, the battery operated SENSORFLO® Sensor Faucet with thermostatic mixing valve is designed to provide years of hygienic and trouble-free service. The low arc style has all components integrated above the counter (including batteries), making it easy to install and maintain. The front-facing sensor incorporates advanced laser technology, emitting a non-visible beam of light for instant on and off operation.

  • Durable low-lead brass construction
  • 0.5 GPM (1.89 LPM) flow rate
  • Front-facing laser sensor eye
  • Battery powered-operation requires 6 AA batteries (included)
  • Vandal resistant body & hardware
  • Includes 1070 certified thermostatic mixing valve
  • Meets ASME A112.18.1/CSA B125.1, NSF 372 & CEC Standards

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome

Flow rate

0.5 GPM

Length

7.0

Collection

Product style

Transitional

Number of holes

Faucet type

Single Hole

Installation type

Counter Mounted

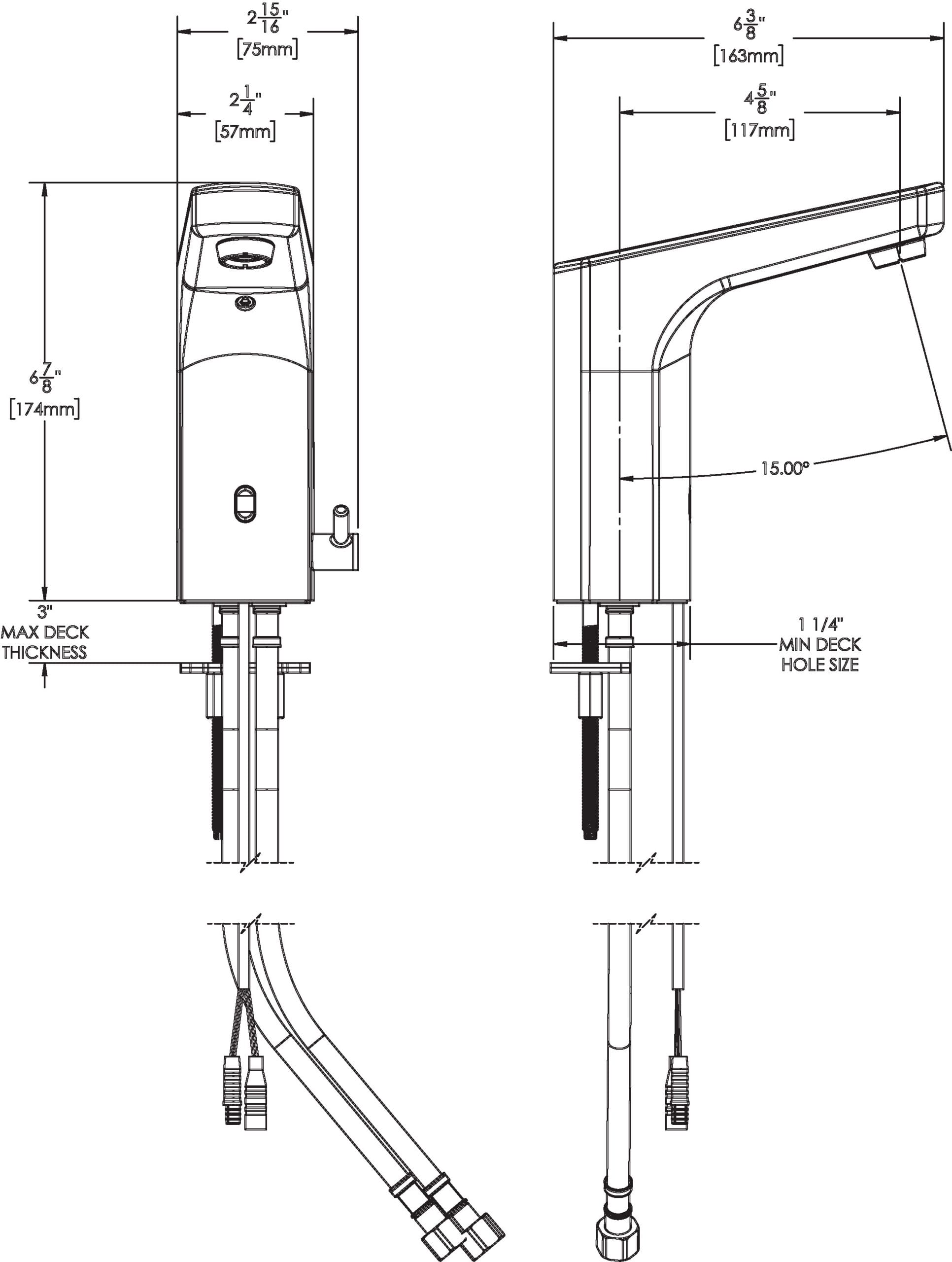

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp
