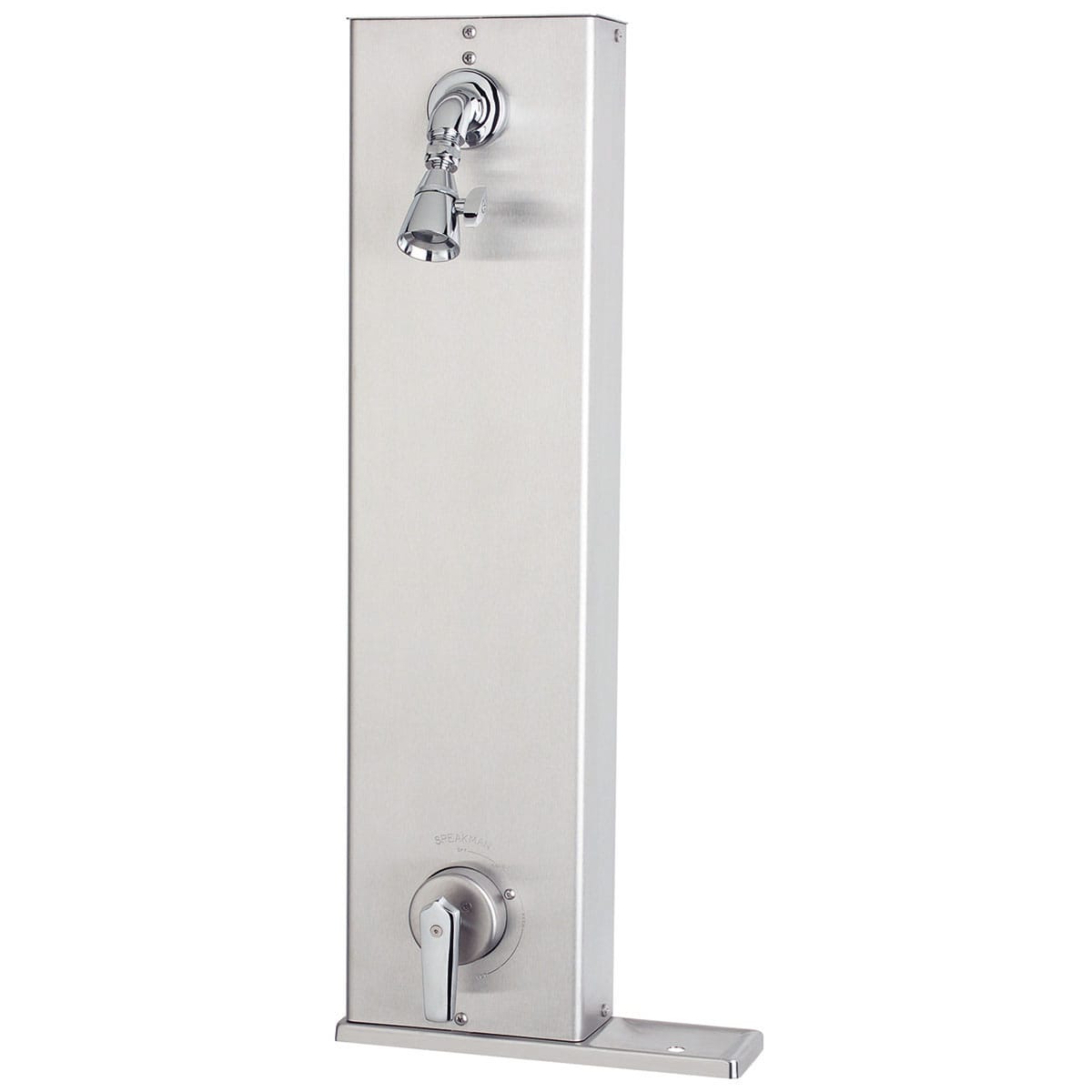

Sentinel Mark II® Exposed Anti-scald Pressure Balanced showers feature a brass lever handle for easy activation. The S-1590-AF has an adjustable temperature limit stop. The valve body is solid brass and included spring check stops. Integral mounting lugs are concealed and the showers 1/2 copper tube inlets can be passed through the wall or dropped from the ceiling. The S-1590-AF is equipped with an 18 gauge stainless steel cover and soap dish. The S-1590-AF meets ASME A112.18.1/CSA B125.1 & ASSE 1016 standards. S-1590-LH does not include a showerhead.
| Weight | 67578171 kg |
|---|---|
| Dimensions | 67594172 × 6723697 cm |
| Product finish | Stainless Steel |
| Flow rate | 2.5 GPM |
| Length | 28.63 |
| Collection | |
| Product style | Commercial |
| Spray type | 3 |
| Installation type | Wall Mounted |
| Shower function | Multifunction |
