Sentinel Mark II Pressure Balance Valve Shower Combination

SKU SM-3070-IS Categories , ,

The Speakman Sentinel Mark II SM-3070-IS Shower and Tub Combination with Transfer Valve was designed to deliver a complete shower experience protected from scalding-hot water. Featuring our signature Sentinel Mark II Pressure Balance Valve – this combination provides anti-scald protection in the shower. The SM-3070-IS includes a fixed shower head, hand shower, shower arm, diverter tub spout, vacuum breaker, stainless steel hose and a supply elbow. The SM-3070-IS is certified to meet ASSE 1016 and ASME A112.18.1/CSA B125.1 standards.

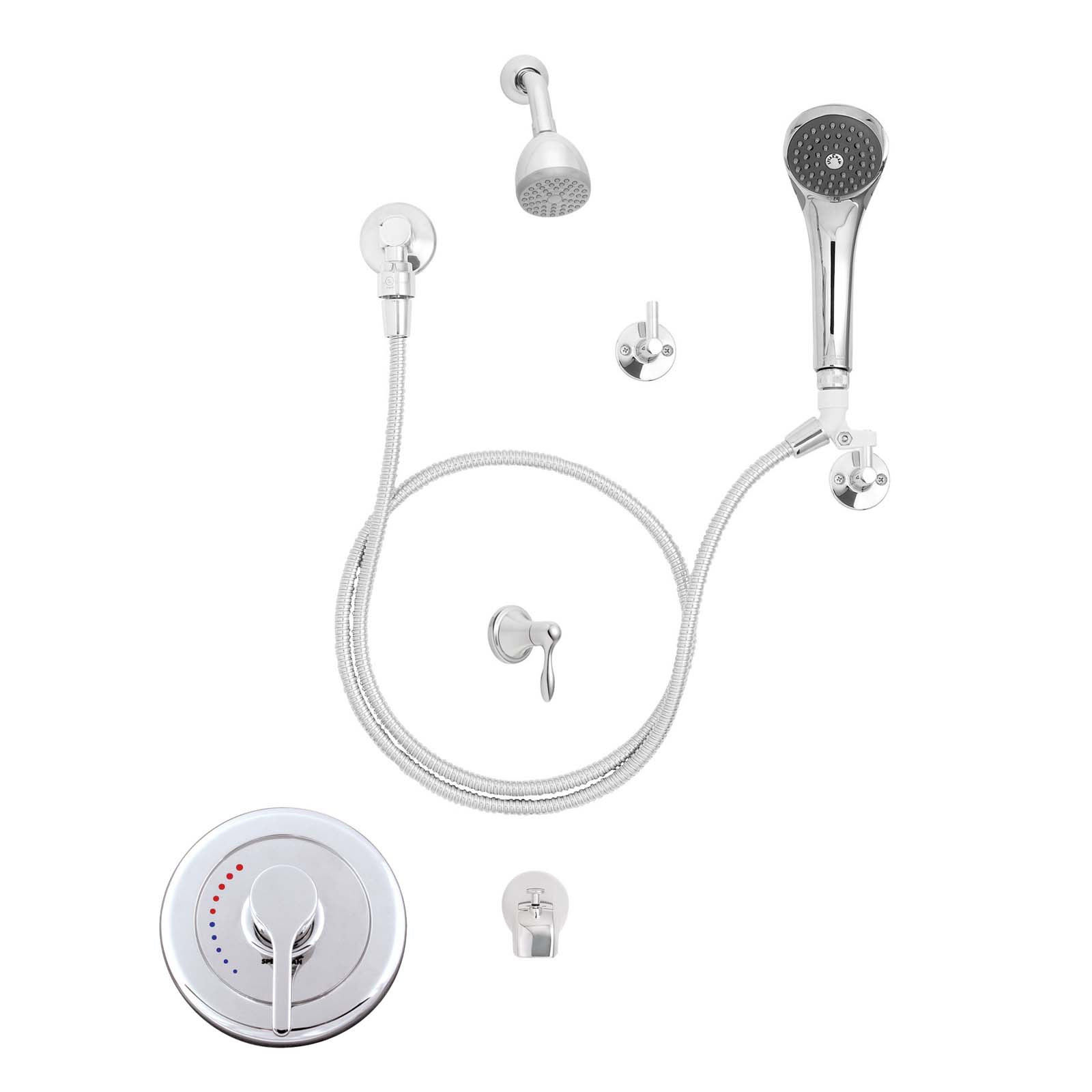

  • Includes VS-1000-AF hand shower, S-124 42 In. slide bar, S-2272-E2 showerhead, S-2500 arm and flange, S1556 diverter tub spout & S-1183 diverter valve
  • Four port valve with 1/2 in. female copper sweat inlets and shower outlet
  • Tub outlet is 1/2″ NPT female
  • Adjustable temperature limit stop
  • Integral Stops
  • Meets ASSE 1016 & ASME A112.18.1/CSA B125.1
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome
Flow rate

2.5 GPM
Collection

Product style

Commercial
Number of holes

Installation type

Wall Mounted
Shower function

Single Function
  • Activation type: Rotate Handle
  • Assembly required: No
  • Connection size: 1/2 NPT female & male; 1/2 copper tube female
  • Connection type: NPT and Sweat/Solder
  • Country of origin: China
  • Diverter included: Yes
  • Diverter location: Shower Valve
  • Drain included: No
  • Escutcheon included: Yes
  • Faucet handle style: Lever and Knob
  • Faucet operation: Manual
  • Flow type: Aerated
  • For use with: S-1183 Transfer Valve
  • Handle location: Front and Side
  • Handles included: Yes
  • Hose length in inches: 60.0
  • Integral stops: Yes
  • Massage feature: Yes
  • Material composition: Brass & Plastic
  • Number of faucet handles: 3
  • Number of shower heads: 2
  • Pause control: Yes
  • Products this item repairs: S-1183
  • Repair part: S-1183
  • Repair part for catalog: S-1183 - Speakman S-1183 Transfer Valve
  • Rough-in valve template included: Yes
  • Scald guard included: Yes
  • Self-cleaning nozzles: Yes
  • Shower arm included: Yes
  • Shower head shape: Round
  • Temperature limit control: Yes
  • Type of shower arm: Bent
  • Valve included: Yes
  • Valve type: Pressure Balance
  • Vandal resistant: No
  • Weight: 3.24

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • CEC certified: No
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • NSF61 IAPMO certified: No
  • State restrictions: CA, HI, OR, WA, CO, MA, NJ, NY, RI VT, MD
  • Consumer warranty: Limited Lifetime
  • Commercial warranty: 5 Year Limited
