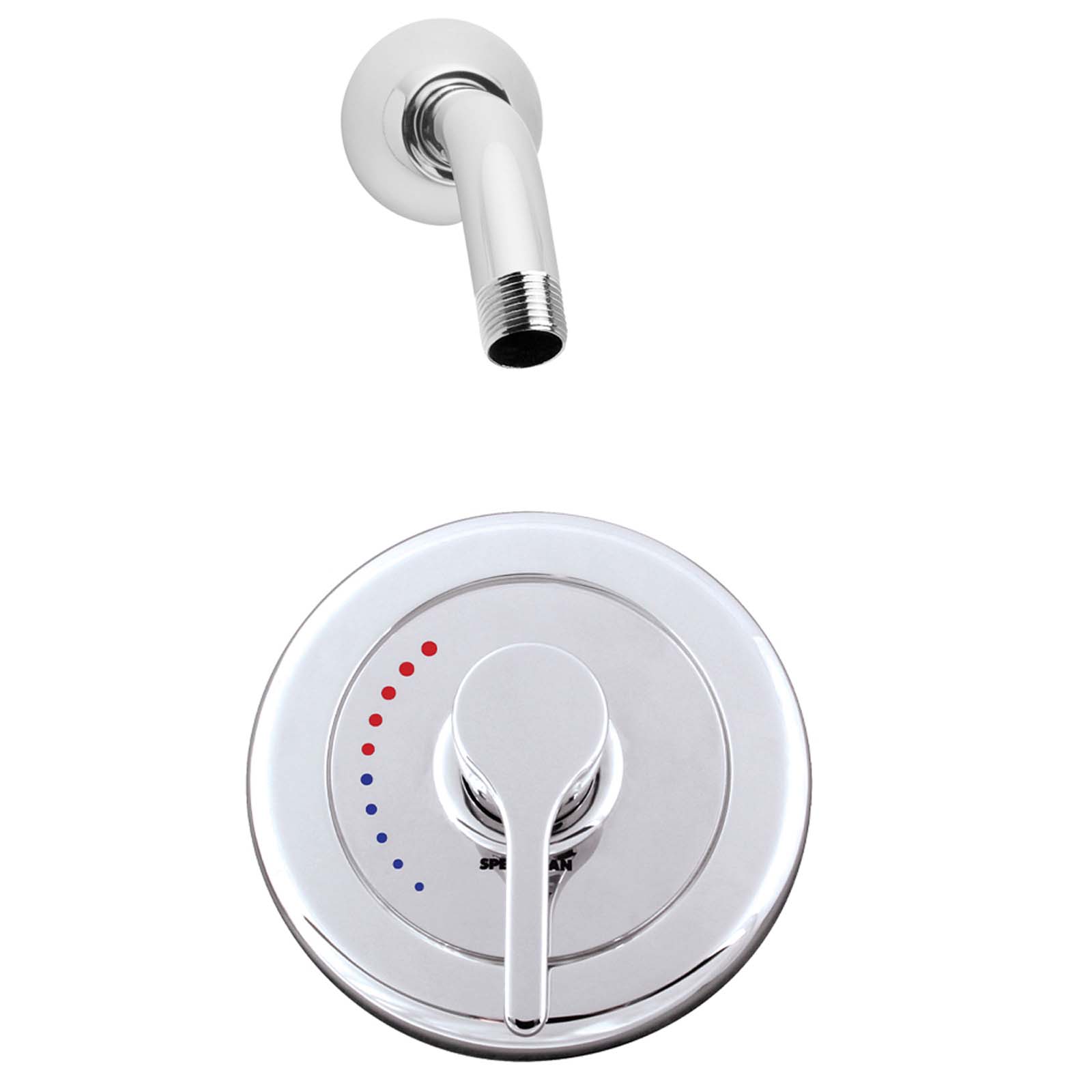

Sentinel Mark II Pressure Balance Valve with Shower Arm

SKU SM-3010-LH Categories , ,

The Speakman Sentinel Mark II SM-3010-LH Shower System Combination includes necessary items to create a complete shower system. Featuring our signature Sentinel Mark II Pressure Balance Valve – this combination provides anti-scald protection in the shower. Additionally, this shower valve is ideal for water-saving shower heads, as it’s designed to function with flow rates as low as 2.0 GPM. The included valve trim features a solid brass plate and handle to offer exceptional durability. Shower head sold separately.

  • Includes S-2500 arm & flange
  • Four port valve with 1/2 in. female copper sweat inlets and shower outlet
  • Tub outlet is 1/2″ NPT female
  • Adjustable temperature limit stop
  • Meets ASSE 1016 & ASME A112.18.1/CSA B125.1
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome
Collection

Product style

Commercial
Number of holes

Spray type

1
Installation type

Wall Mounted
Shower function

Single Function
  • Activation type: Rotate Handle
  • Assembly required: No
  • Connection size: 1/2 NPT female & male & 1/2 copper tube female
  • Connection type: NPT and Sweat/Solder
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet handle style: Lever
  • Faucet operation: Manual
  • For use with: S-2272-E2 2.0 gpm Low Flow Single-Function Shower Head
  • Handle location: Center of Valve
  • Handles included: Yes
  • Integral stops: No
  • Massage feature: No
  • Material composition: Brass & Plastic
  • Number of faucet handles: 1
  • Number of jets: 50
  • Number of shower heads: 1
  • Pause control: No
  • Products this item repairs: S-2272-E2
  • Repair part: S-2272-E2
  • Repair part for catalog: S-2272-E2 - Speakman S-2272-E2 2.0 gpm Low Flow Single-Function Shower Head
  • Rough-in valve template included: Yes
  • Scald guard included: Yes
  • Self-cleaning nozzles: Yes
  • Shower arm included: Yes
  • Shower head face diameter: 2.75
  • Shower head shape: Round
  • Temperature limit control: Yes
  • Type of shower arm: Bent
  • Valve included: Yes
  • Valve type: Ceramic
  • Vandal resistant: No
  • Weight: 3.24

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: Yes
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • NSF61 IAPMO certified: No
  • Consumer warranty: Limited Lifetime
  • Commercial warranty: 5 Year Limited
