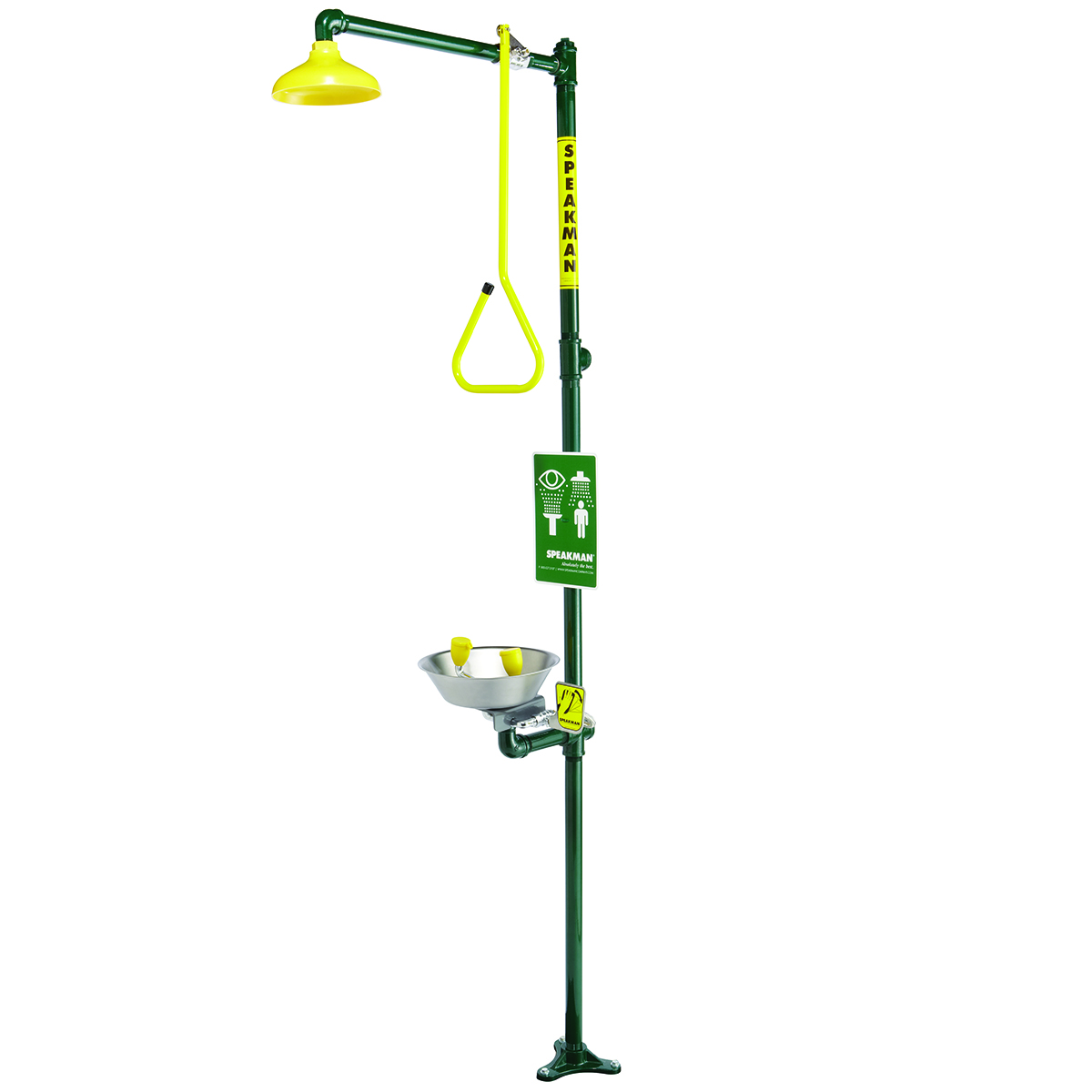

Traditional Series SE-690 Combination Emergency Station with Stainless Steel Bowl Eye/face Wash

SKU SE-690 Categories , ,

Speakman traditional series combination emergency stations provide the highest level of performance in times of need. All traditional series combination stations feature a high performance emergency shower head and a 1-1/4″ DuraJade powder coated stanchion. The Speakman Traditional Series SE-690 Combination Emergency Station with Stainless Steel Bowl Eye/face Wash features a stay open ball valve, allowing hands free operation once the shower has been activated and an SE-490 eye/face wash. The high visibility yellow pull rod, makes finding the SE-690 easy in an emergency. The SE-690 meets ANSI/ISEA Z385.1 compliance.

  • ABS plastic 8-inch shower head
  • SE-490 eye/facewash
  • High visibility pull-rod activated shower
  • Push-handle activated eye/facewash
  • ANSI/ISEA Z358.1 certified
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

DuraJade Powder Coat
Flow rate

20 GPM @ 30 PSI
Length

30.0
Collection

Product style

Industrial
Number of holes

Spray type

1
Installation type

Floor Mounted
Shower function

Single Function
  • Activation type: Push Handle/Pull Rod
  • Assembly required: No
  • Bowl material: Stainless Steel
  • Connection size: 1.25 In. NPT
  • Connection type: Threaded Pipe
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet handle style: Pull Rod and Paddle
  • Flow type: Aerated & Laminar
  • For use with: Repair Part RPG05-0715 Non-aerated bullhorn assembly
  • Galvanized location: Pipe & Fittings
  • Handle location: Top and Side
  • Handles included: Yes
  • Integral stops: No
  • Massage feature: No
  • Material composition: Stainless Steel, Brass, Plastic & Steel
  • Number of faucet handles: 2
  • Number of shower heads: 1
  • Pause control: No
  • Products this item repairs: RPG05-0715
  • Repair part: RPG05-0715
  • Repair part for catalog: RPG05-0715 - Speakman Repair Part RPG05-0715 Non-aerated bullhorn assembly
  • Replacement item for: SE-690-PA
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: Yes
  • Shower arm included: No
  • Shower head face diameter: 8.0
  • Shower head shape: Round
  • Temperature limit control: No
  • Tools needed for assembly: Adjustable Wrench; Pipe Wrench, Strap Wrench, Pipe Thread Sealant/Locker
  • Valve included: Yes
  • Valve type: Ball Valve
  • Vandal resistant: No
  • Weight: 37.4
  • Width: 14.88

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: No
  • ANSI Z358.1 IAPMO certified:Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • Cadmium content: No
  • Chromium content: Yes
  • IGC 272 IAPMO certified: No
  • Lead content: Yes
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • Mercury content: No
  • NSF61 IAPMO certified: No
  • Consumer warranty: 3 Year Limited
  • Commercial warranty: 3 Year Limited
