Two Handle Exposed Shwr S-2251

SKU SC-1220-1-AF Categories , ,

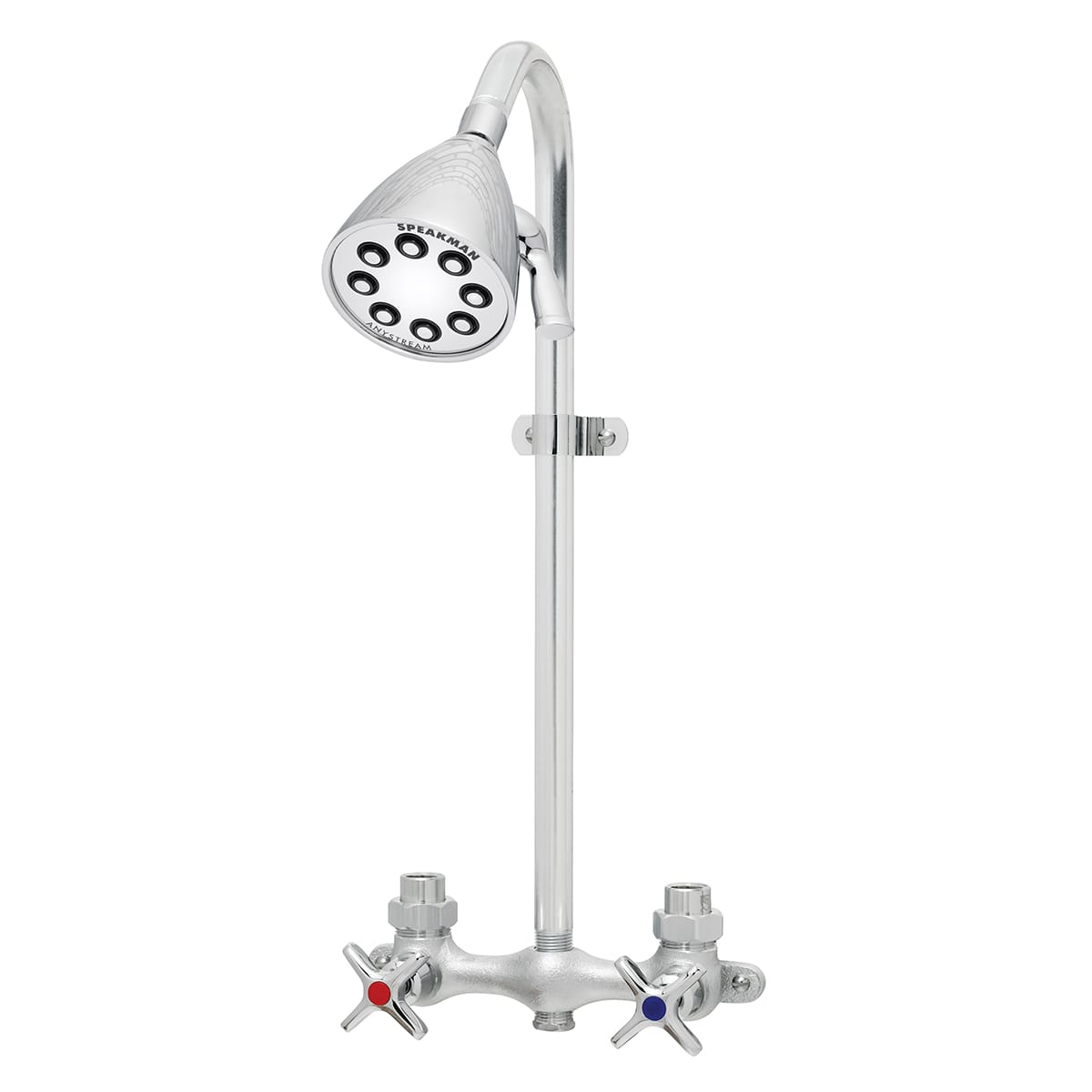

The Commander SC-1220-1-AF Exposed Shower System features a rough chrome-plated brass finish with a galvanized gooseneck with supporting strap. The SC-1220-1-AF is equipped with 1/4 turn ceramic cartridges and four-arm cross handles with color-coded indexes. The valve body is reversible on 6 In. centers. Included with the SC-1220-1-AF is our Icon S-2251 8-Jet Shower Head.

  • Cross Handles
  • Includes S-2251 brass showerhead
  • 1/4 turn ceramic cartridges
  • Rough chrome plated finish
  • Meets ASME A112.18.1/CSA B125.1
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Rough Chrome Plated
Flow rate

2.5 GPM
Length

8.25
Collection

Product style

Commercial
Number of holes

Spray type

3
Faucet type

Widespread
Installation type

Wall Mounted
Shower function

Multifunction
  • Activation type: Rotate Handle
  • Assembly required: Yes
  • Connection size: 1/2 IN-14
  • Connection type: NPT
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet center measurement: 6
  • Faucet handle style: Cross
  • Faucet operation: Manual
  • Flow type: Spray
  • For use with: Repair Part RPG04-0323-PC Cross Handle with Indexes & Sleeves
  • Handle location: Side
  • Handles included: Yes
  • Integral stops: No
  • Massage feature: No
  • Material composition: Brass
  • Number of faucet handles: 3
  • Number of jets: 50
  • Number of shower heads: 1
  • Pause control: No
  • Products this item repairs: RPG04-0323-PC
  • Repair part: RPG04-0323-PC
  • Repair part for catalog: RPG04-0323-PC - Speakman Repair Part RPG04-0323-PC Cross Handle with Indexes & Sleeves
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: No
  • Shower arm included: Yes
  • Shower head face diameter: 3.63
  • Shower head shape: Round
  • Temperature limit control: No
  • Tools needed for assembly: PHILLIPS SCREWDRIVER, ADJUSTABLE WRENCH, PIPE WRENCH, STRAP WRENCH, PLUMBING TAPE, DRILL, DRILL BITS
  • Type of shower arm: Sheppard's Hook
  • Valve included: Yes
  • Valve type: 1/4 turn ceramic
  • Vandal resistant: No
  • Weight: 5
  • Width: 9.25

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: No
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • CEC certified: No
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • NSF61 IAPMO certified: No
  • State restrictions: CA, HI, OR, WA, CO, MA, NJ, NY, RI VT, MD
  • Consumer warranty: 5 Year Limited
  • Commercial warranty: 5 Year Limited
