Under Counter Thermostatic Valve

SKU A-TMV Categories Plumbing, Sensor Faucets and Accessories, Faucet Accessory

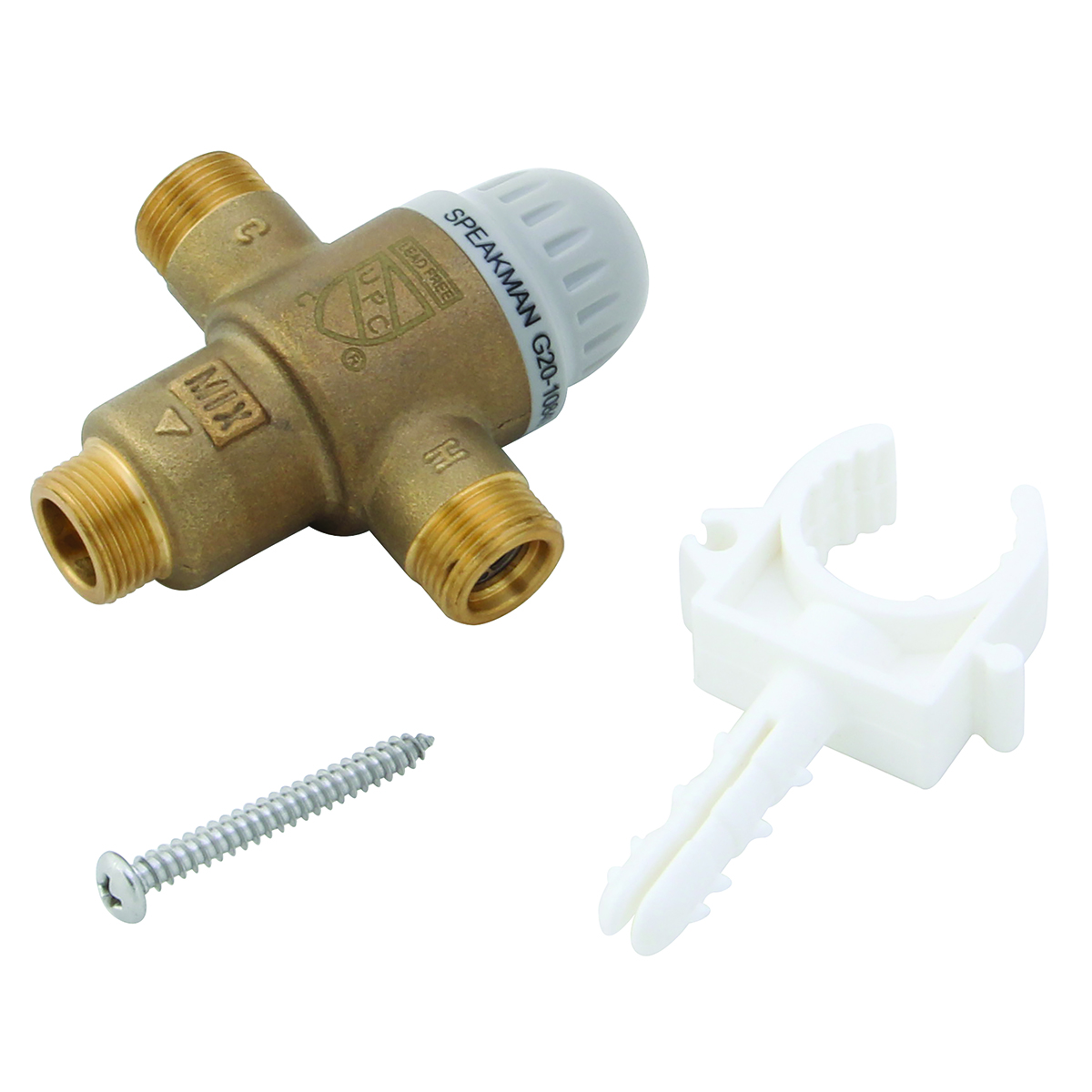

The Speakman A-TMV Under Counter Thermostatic Mixing Valve is a compact thermostatic mixing valve for use with a variety of faucet installations. A-TMV regulates outlet temperature of water to ensure safe & tepid water is delivered to the user. A-TMV has a compact footprint that allows for easier installations under counter with 3/8″ compression male threaded inlets & outlet. The minimum flow rate is 0.35 GPM. A-TMV is certified to ASSE 1070.

Faucet thermostatic mixing valve
Minimum flow rate is 0.35 GPM (1.3 L/min)

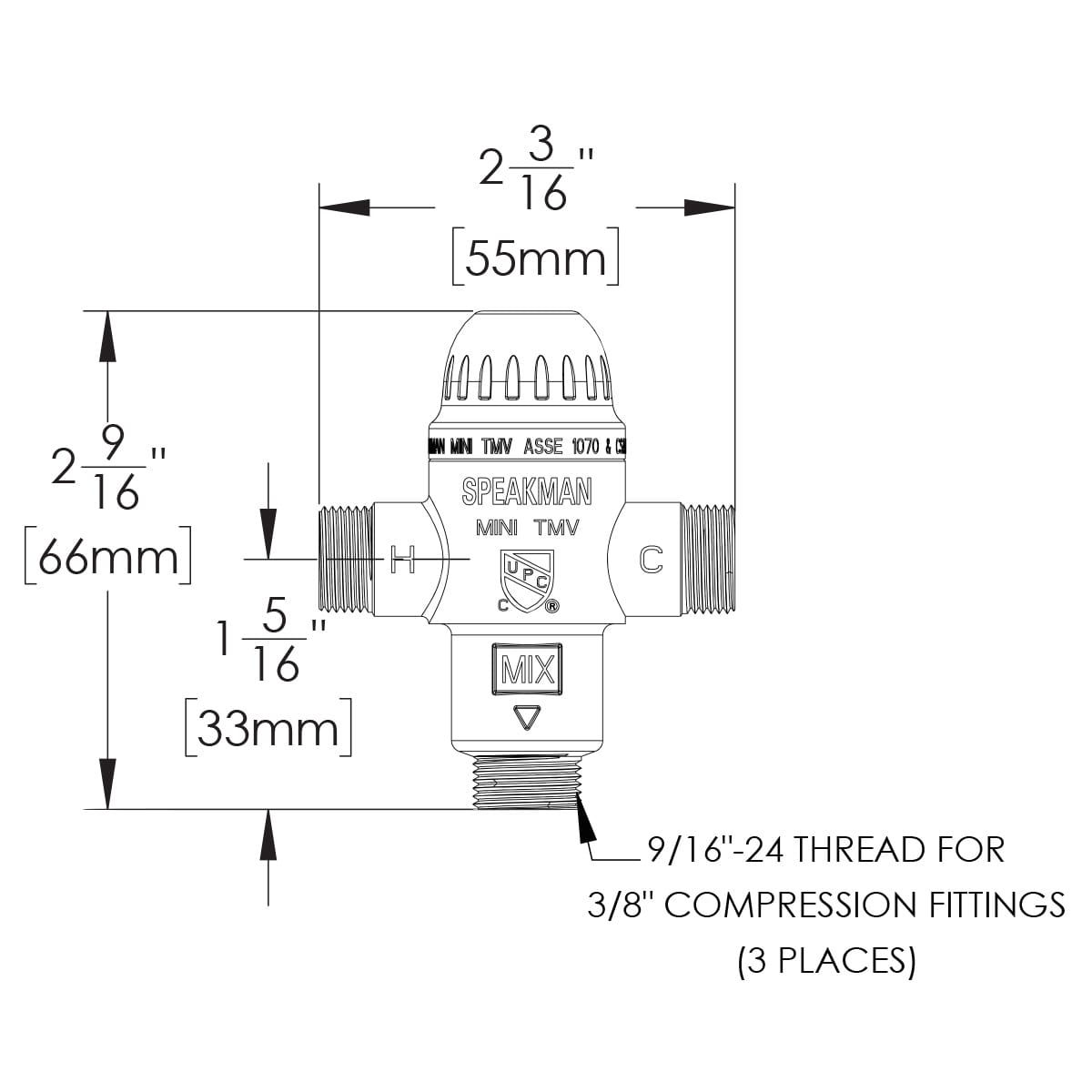

3/8″ compression male threaded inlets & outlet
Compact design allows for easier under counter installation
Certified to ASSE 1070

Features and Specifications

Additional information

Weight	67578171 kg
Dimensions	67594172 × 6723697 cm
Product finish	Rough Brass
Flow rate	2.16 GPM @ 30 PSI
Length	1
Collection	Sensorflo
Installation type	Wall Mounted

Assembly required: No
Connection size: 3/8
Connection type: Compression
Country of origin: China
Diverter included: No
Drain included: No
Escutcheon included: No
For use with: Thermostatic & O-Ring Repair Kit
Handles included: No
Integral stops: No
Massage feature: No
Material composition: Stainless Steel, Brass, Plastic
Pause control: No
Products this item repairs: RPG05-109269
Repair part: RPG05-109269
Repair part for catalog: RPG05-109269 - Thermostatic & O-Ring Repair Kit
Rough-in valve template included: No
Scald guard included: Yes
Self-cleaning nozzles: No
Shower arm included: No
Special features: Smallest footprint 1070 thermostatic mixing valve in the market
Temperature limit control: Yes
Tools needed for assembly: ADJUSTABLE WRENCH, PHILLIP SCREW DRIVER, DRILL, DRILL BIT
Valve included: No
Valve type: Thermostatic
Vandal resistant: No
Weight: 0.6
Width: 2.19
