Versatile ADA Shower System

SKU VS-2954 Categories , ,

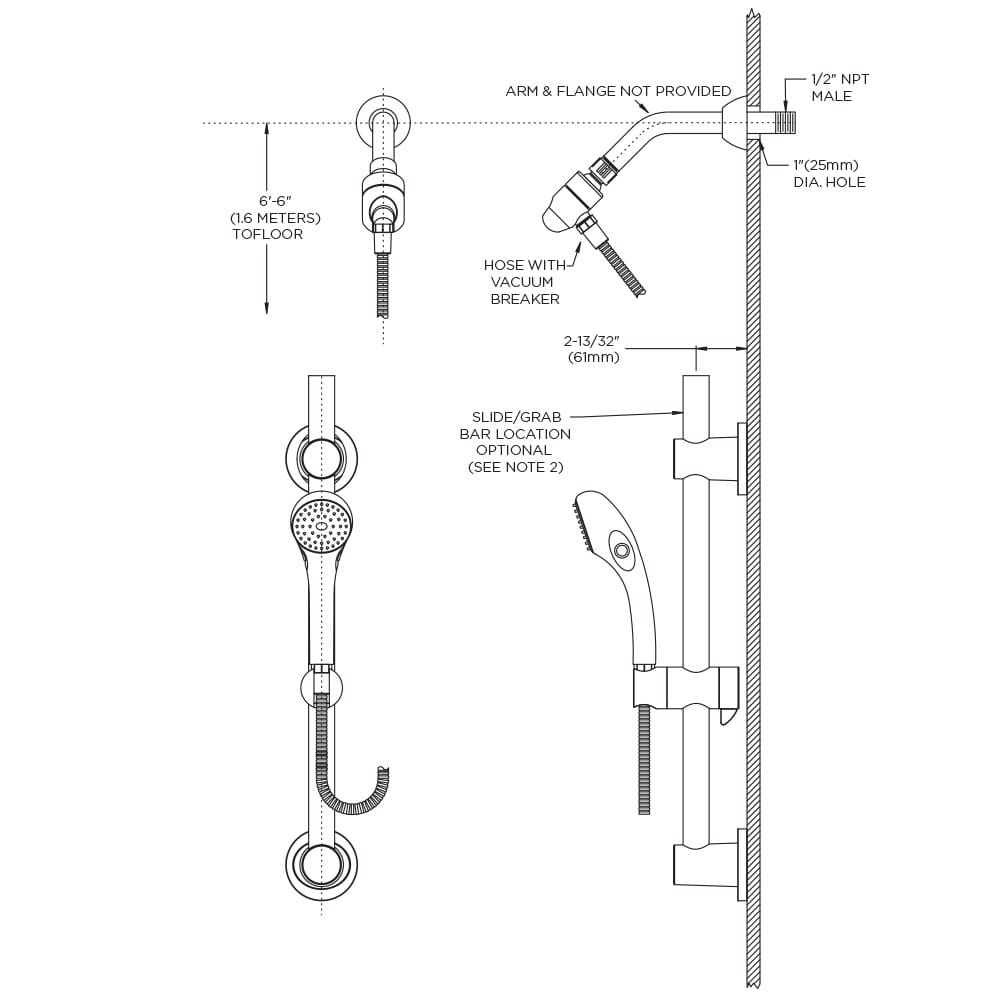

Versatile ADA Compliant Hand-held Shower System is an ideal solution for healthcare applications. The VS-2954 features a 60 In. metal hose and ADA compliant slide/grab bar. The shower system also includes a 7 In. shower arm and flange. The VS-2954 is certified to meet ASME A112.18.1/CSA B125.1 standards.

  • Features a powerful, single function spray hand shower
  • Hand shower features integral thumb operated pause/trickle non-positive shut-off
  • Includes 60 in. metal hose, vacuum breaker and mounting bracket
  • 24 In. slide bar meets ADA pull force specification
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome
Flow rate

2.5 GPM
Collection

Product style

Commercial
Number of holes

Spray type

1
Installation type

Wall Mounted
Shower function

Single Function
  • Activation type: Rotate Handle
  • Assembly required: No
  • Connection size: 1/2 In. NPTM
  • Connection type: Threaded Pipe
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet operation: Manual
  • Flow type: Spray
  • For use with: G56-0031-PC
  • Handles included: No
  • Hose length in inches: 60.0
  • Integral stops: No
  • Massage feature: No
  • Material composition: Stainless Steel & Plastic
  • Number of jets: 50
  • Number of shower heads: 1
  • Pause control: Yes
  • Products this item repairs: G56-0031-PC
  • Repair part: G56-0031-PC
  • Repair part for catalog: G56-0031-PC - Bnt Vs-82620 Brcket/flow Cntrl
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: No
  • Shower arm included: Yes
  • Shower head face diameter: 3.13
  • Shower head shape: Round
  • Temperature limit control: No
  • Tools needed for assembly: Adjustable wrench; teflon tape, Screw driver
  • Type of shower arm: Fixed
  • Valve included: No
  • Vandal resistant: No
  • Weight: 4.01

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • CEC certified: No
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • NSF61 IAPMO certified: No
  • State restrictions: CA, HI, OR, WA, CO, MA, NJ, NY, RI VT, MD
  • Consumer warranty: Limited Lifetime
  • Commercial warranty: 1 Year Limited
