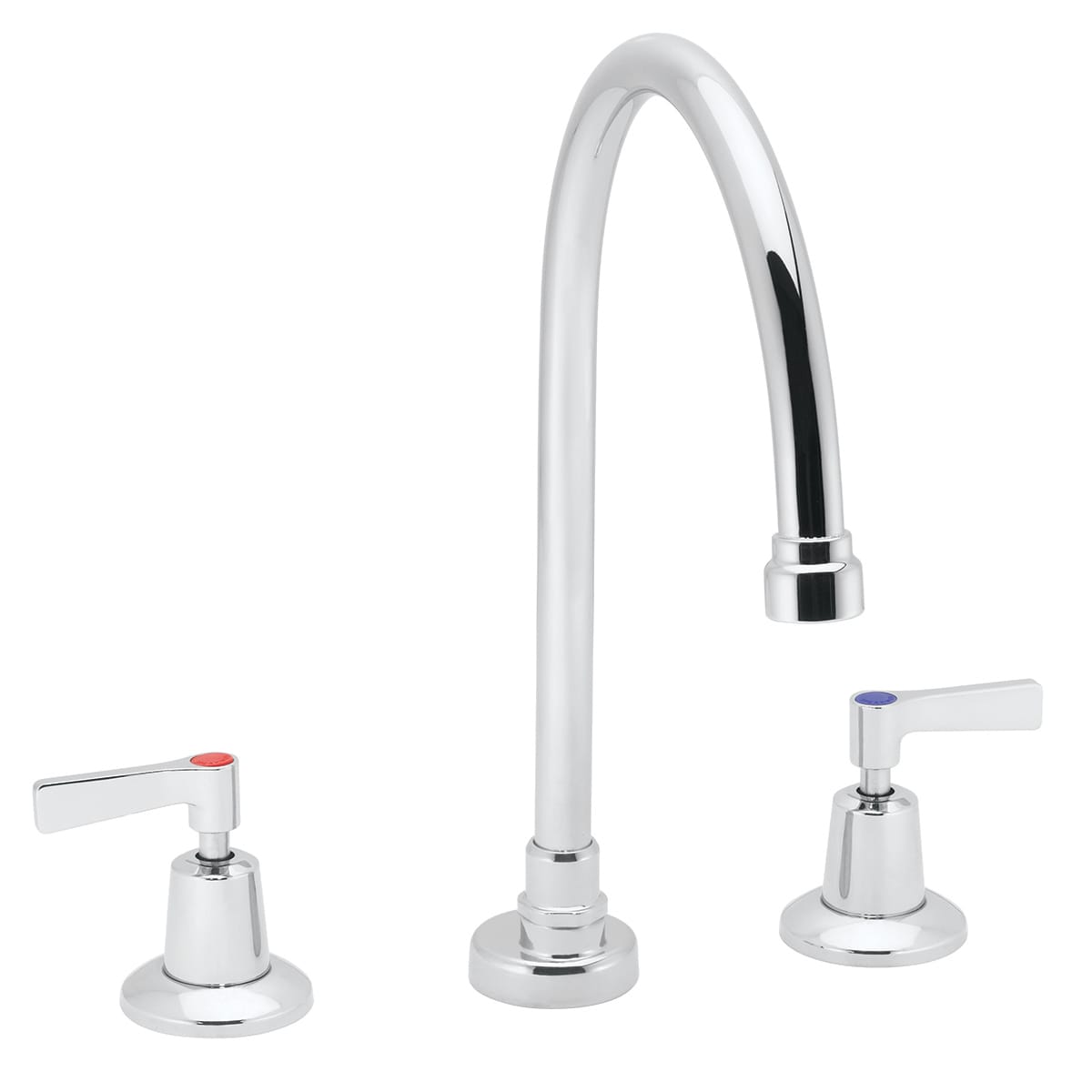

Commander 8″ Gooseneck Widespread Lever Faucet

SKU SC-3002-8-LD-E Categories , ,

Ideal for any public facility, this Commander SC-3002-8-LD-E Widespread Faucet is built to endure any task with remarkable ease. A solid-brass construction is featured to deliver unrivaled durability. Two vandal-resistant lever handles are designed for precise control with added stability. An 8-inch deep gooseneck spout is available in rigid or swivel for convenience. Meets ASME A112.18.1/CSA B125.1, NSF 61 and WNSF 372 standards.

  • Features a solid, Low lead brass construction
  • 0.5 gpm flow rate
  • Lever Handles
  • Fixed or swivel spout
  • Three hole installation
  • Meets ASME A112.18.1/CSA B125.1, NSF 372 and NSF 61
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome
Flow rate

0.5 GPM
Length

8.0
Collection

Product style

Commercial
Number of holes

Faucet type

Widespread
Installation type

Counter Mounted
  • Activation type: Rotate Handle
  • Assembly required: Yes
  • Connection size: 1/2 In.
  • Connection type: Compression
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet center measurement: 8
  • Faucet handle style: Lever
  • Faucet operation: Manual
  • Flow type: Aerated
  • For use with: Repair Part G18-0217-CA 8" Gooseneck Assembly
  • Handle location: Side
  • Handles included: Yes
  • Integral stops: No
  • Massage feature: No
  • Material composition: Brass
  • Number of faucet handles: 2
  • Pause control: No
  • Power source: Manual
  • Products this item repairs: G18-0217-CA
  • Repair part: G18-0217-CA
  • Repair part for catalog: G18-0217-CA - Speakman Repair Part G18-0217-CA 8" Gooseneck Assembly
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: No
  • Shower arm included: No
  • Spout height in inches: 7.41
  • Spout length in inches: 8.0
  • Temperature limit control: No
  • Tools needed for assembly: Adjustable Wrench; Groove Joint Plier; Phillips Screwdriver; Thread Seal Tape
  • Type of spout: Rigid/Swivel
  • Valve included: Yes
  • Valve type: Ceramic
  • Vandal resistant: No
  • Weight: 4.85
  • Width: 12.31

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: Yes
  • CEC certified: Yes
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: Yes
  • Meets ARRA: No
  • NSF61 IAPMO certified: Yes
  • Consumer warranty: Limited Lifetime
  • Commercial warranty: 5 Year Limited
