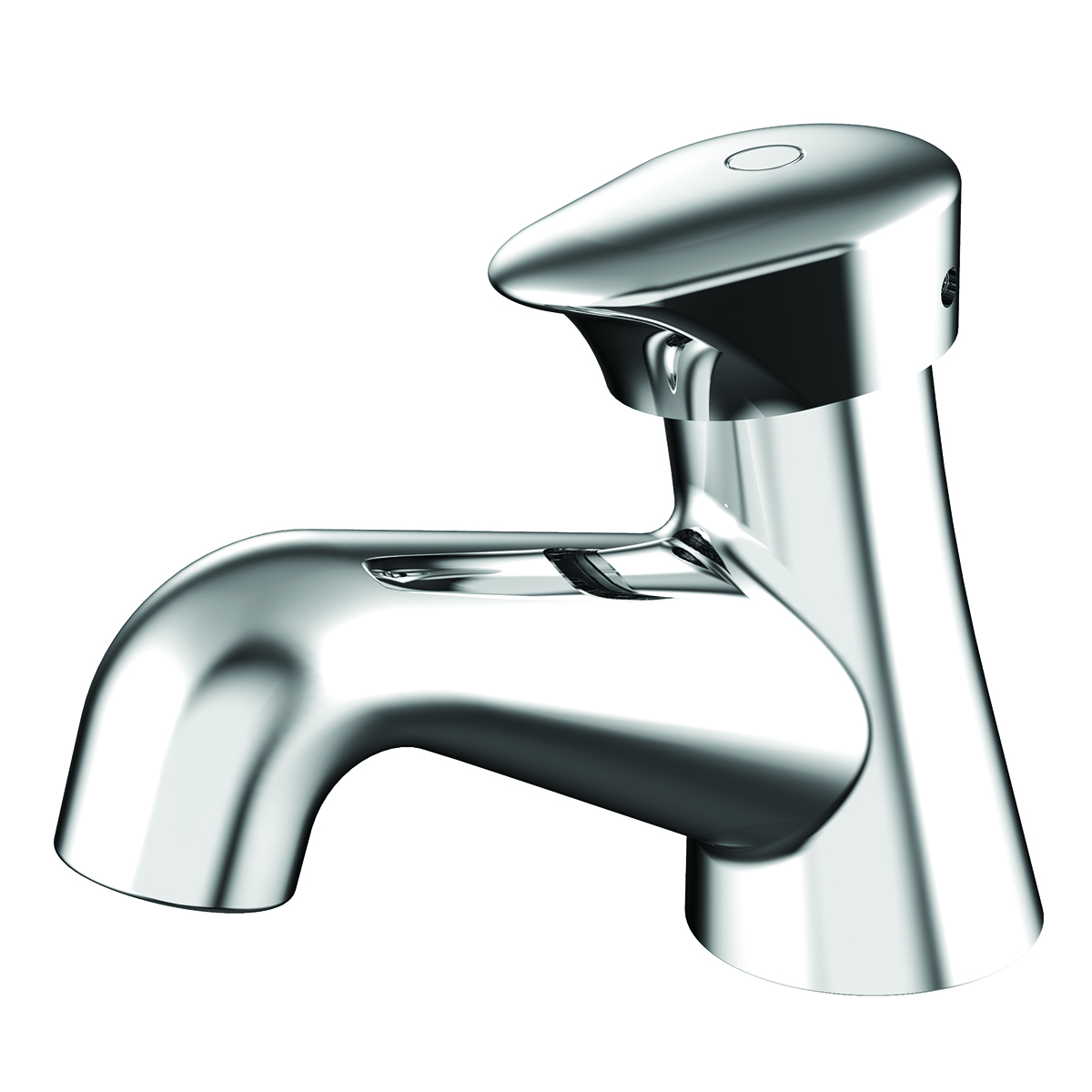

Single Supply Metering Faucet

SKU S-5122 Categories Plumbing, Metering Faucets, Single Supply Faucet

Durability and reliability are built into the S-5122 Speakman Metering Faucet. The lead-free brass construction can be used safely for hand washing and drinking in virtually any public space. The handle activates with less than 5 pounds of force for easy operation and full ADA compliance. The cartridges are also built to last, exceeding 100,000 cycles and offering easy cycle time adjustment.

Durable lead-free brass construction meets NSF 372 & NSF 61 standards for safe, potable drinking water
ADA compliant vandal-resistant handles ensure easy operation and durability
Field adjustable cycle time allows facilities to adjust the run time to meet their unique needs
Cycle time adjustment can be performed without shutting off water for time savings
Long-life cartridges ensure years of consistent low maintenance faucet performance
0.5 GPM flow control installed and factory preset cycle time of 0.25 gal/cycle
0.35 GPM flow control is available, item# is A-FC35
Meets ASME A112.18.1/CSA B125.1, NSF 372 & NSF 61

Features and Specifications

Additional information

Weight	67578171 kg
Dimensions	67594172 × 6723697 cm
Product finish	Polished Chrome
Flow rate	0.5 GPM
Length	1.94
Collection	Easy-Push
Product style	Transitional
Number of holes	1
Faucet type	Single Hole
Installation type	Sink Mounted

Activation type: Push
Assembly required: No
Connection size: 1/2"-14
Connection type: NPSM
Country of origin: China
Diverter included: No
Drain included: No
Escutcheon included: No
Faucet handle style: Push Button
Flow type: Aerated
For use with: Handle Indicators for the Easy Push Metering Faucets
Handle location: Top
Handles included: Yes
Integral stops: No
Massage feature: No
Material composition: Brass, Plastic, Zinc
Max deck thickness in inches: 1.0
Number of faucet handles: 1
Pause control: No
Products this item repairs: RPG05-108060
Repair part: RPG05-108060
Repair part for catalog: RPG05-108060 - Handle Indicators for the Easy Push Metering Faucets
Rough-in valve template included: No
Scald guard included: No
Self-cleaning nozzles: No
Shower arm included: No
Spout height in inches: 1.31
Spout length in inches: 5.39
Spout reach in inches: 3.96
Temperature limit control: No
Tools needed for assembly: ADJUSTABLE WRENCH; GROOVE JOINT PLIER; THREAD SEAL TAPE
Type of spout: Rigid
Valve included: Yes
Valve type: Self-Closing
Vandal resistant: No
Weight: 1.84
Width: 5.43
