Commander Hose Bibb

SKU SC-5911-IS Categories ,

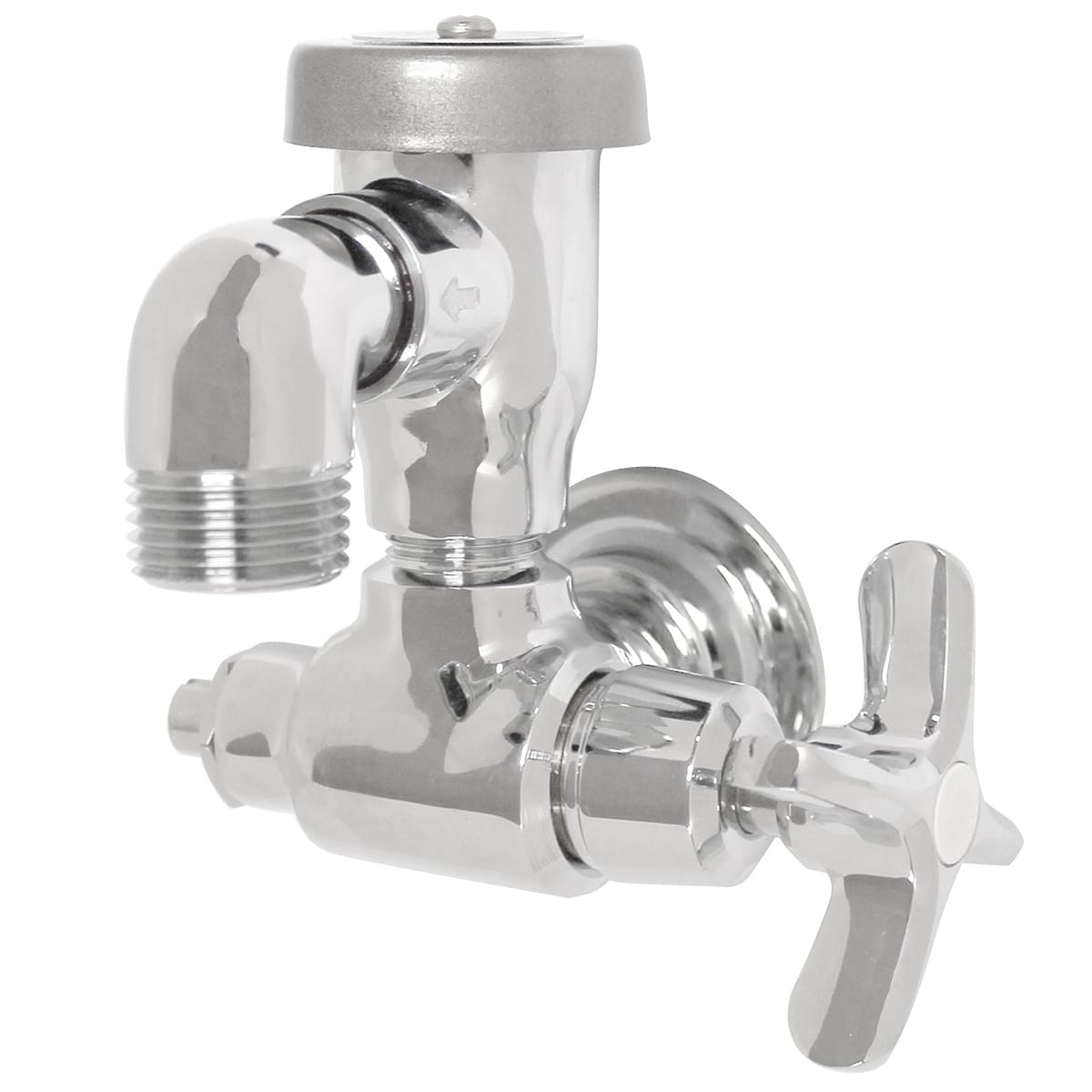

The SC-5911-IS is a chrome plated hose bibb and mop fitting. The product is equipped with a 1/4 turn ceramic cartridge and integral stop. The SC-5911-IS is activated by turning the vandal-resistant four arm handle.

  • 1/4 turn ceramic cartridge
  • Vandal-resistant four arm handle
  • 3/4 In. threaded hose end nozzle vacuum breaker, and wall flange
  • Meets ASME A112.18.1/CSA B125.1 & ASSE 1001
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome
Collection

Product style

Commercial
Number of holes

Installation type

Wall Mounted
  • Activation type: Rotate Handle
  • Assembly required: No
  • Connection size: 1/2" NPTF Inlet, 3/4 Male Hose Threads
  • Connection type: NPT
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet handle style: Cross
  • Faucet operation: Manual
  • For use with: Repair Part RPG04-0323-PC Cross Handle with Indexes & Sleeves
  • Handle location: Top
  • Handles included: Yes
  • Integral stops: Yes
  • Massage feature: Yes
  • Material composition: Brass
  • Number of faucet handles: 1
  • Pause control: No
  • Products this item repairs: RPG04-0323-PC
  • Repair part: RPG04-0323-PC
  • Repair part for catalog: RPG04-0323-PC - Speakman Repair Part RPG04-0323-PC Cross Handle with Indexes & Sleeves
  • Rough-in valve template included: Yes
  • Scald guard included: No
  • Self-cleaning nozzles: No
  • Shower arm included: No
  • Temperature limit control: No
  • Tools needed for assembly: Phillips screwdriver; adjustable wrench; aerator wrench(supplied); pipe wrench; allen wrench
  • Valve included: Yes
  • Valve type: 1/4 turn ceramic
  • Vandal resistant: No
  • Weight: 2.1

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: No
  • ASME A112.181/CSA B125.1 IAPMO certified: Yes
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • NSF61 IAPMO certified: No
  • Consumer warranty: 5 Year Limited
  • Commercial warranty: 5 Year Limited
