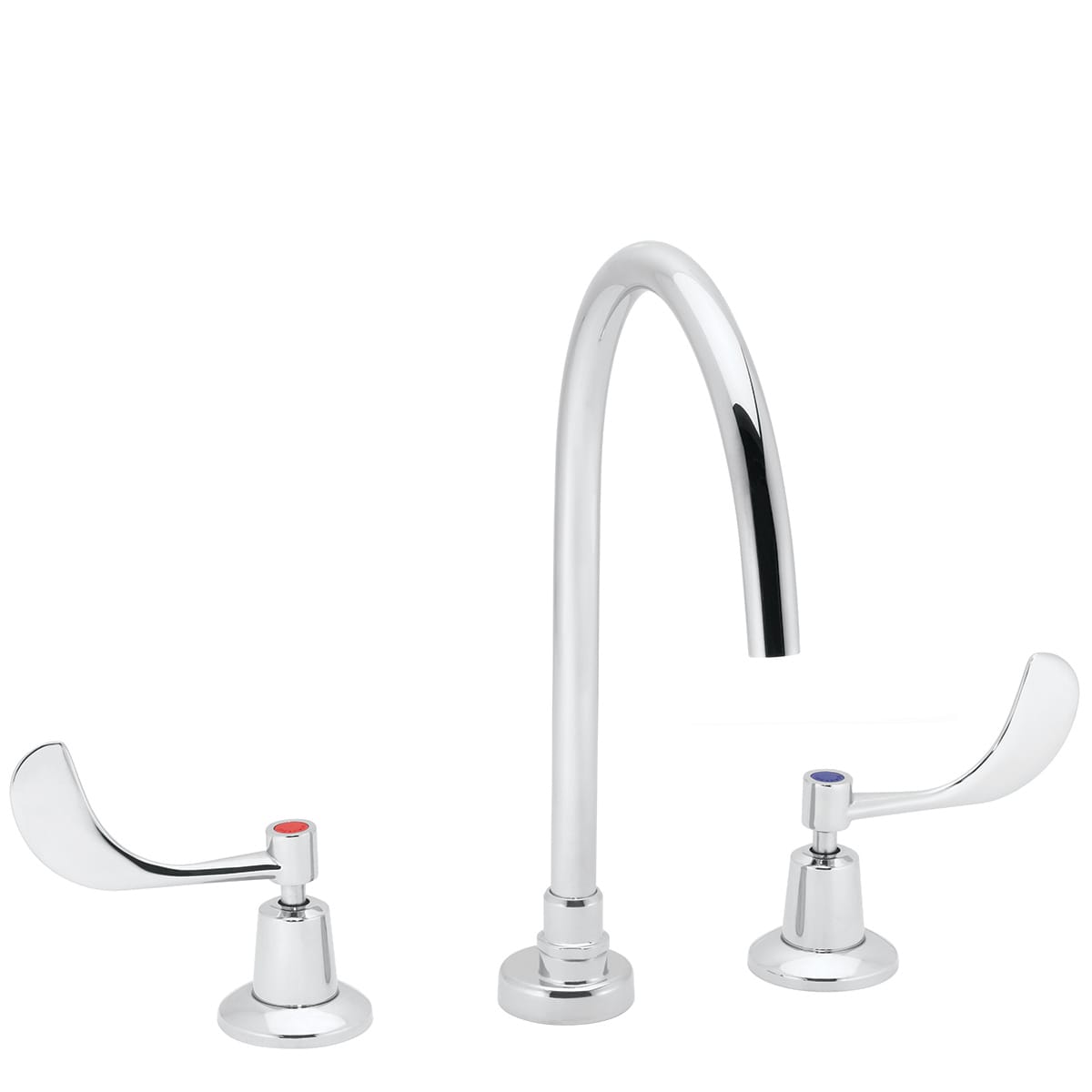

Commander SC-3004-FC-LD Gooseneck Widespread Lavatory Faucet

SKU SC-3004-FC-LD Categories , ,

Bring classically designed elegance to your home, office or establishment with this Commander SC-3004-FC-LD Widespread Faucet. Featuring two 4″, vandal-resistant wrist blade handles, this faucet is designed to tackle the toughest of tasks with ease. A solid-brass construction offers unrivaled durability. The equipped 8-inch deep gooseneck spout is available in rigid or swivel for added convenience. Meets ASME A112.18.1/CSA B125.1, NSF 61 and NSF 372 standards.

  • Features a solid, Low lead brass construction
  • 2.2 gpm flow rate
  • 4 In. Wrist Blade Handles
  • Fixed or swivel spout
  • Three hole installation
  • Meets ASME A112.18.1/CSA B125.1, NSF 372 and NSF 61
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome
Flow rate

2.2 GPM
Collection

Product style

Commercial
Faucet type

Widespread
Installation type

Counter Mounted
  • Activation type: Rotate Handle
  • Assembly required: Yes
  • Connection size: 1/2 In. NPSM
  • Connection type: NPT and Sweat/Solder
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet center measurement: 8
  • Faucet handle style: Wrist Blade
  • Faucet operation: Manual
  • Flow type: Laminar
  • For use with: Repair Part G18-0217-CA 8" Gooseneck Assembly
  • Handle location: Side
  • Handles included: Yes
  • Integral stops: No
  • Massage feature: No
  • Material composition: Metal
  • Pause control: No
  • Products this item repairs: G18-0217-CA
  • Repair part: G18-0217-CA
  • Repair part for catalog: G18-0217-CA - Speakman Repair Part G18-0217-CA 8" Gooseneck Assembly
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: No
  • Shower arm included: No
  • Temperature limit control: No
  • Tools needed for assembly: Adjustable Wrench; Groove Joint Plier; Phillips Screwdriver; Thread Seal Tape
  • Type of spout: Rigid
  • Valve included: Yes
  • Valve type: Ceramic
  • Vandal resistant: No
  • Weight: 5.05

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: Yes
  • CEC certified: No
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: Yes
  • Meets ARRA: No
  • NSF61 IAPMO certified: Yes
  • State restrictions: CA, HI, OR, WA, CO, MA, NJ, NY, RI VT, GA, MD
  • Consumer warranty: Limited Lifetime
  • Commercial warranty: 5 Year Limited
