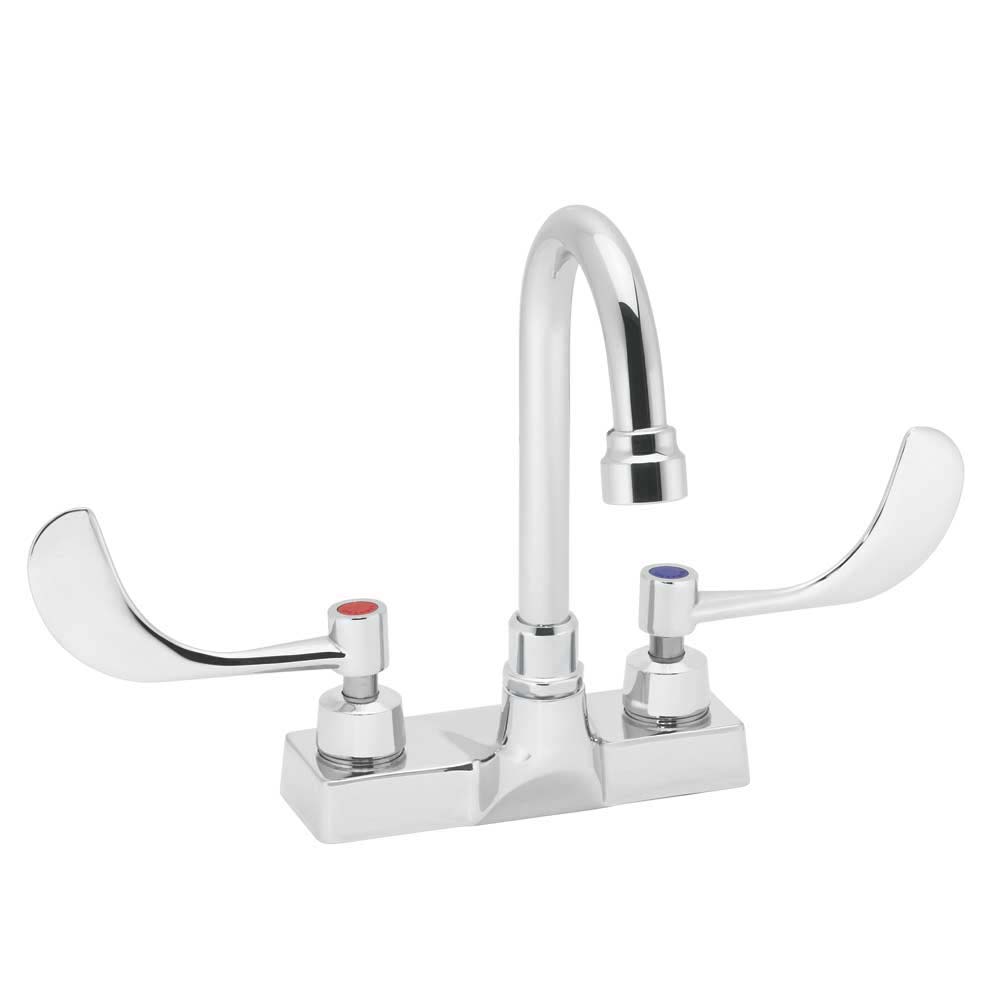

Commander SC-3084-LD-E Gooseneck Centerset Lavatory Faucet

SKU SC-3084-LD-E Categories , ,

This classically designed Commander Centerset Faucet features a sensible style that is compatible with any décor. Dual 4-inch wrist blade handles have a vandal-resistant, solid-brass construction to endure endless tasks with ease. A 3¾” gooseneck spout is available in rigid or swivel for added convenience. The Comander Centerset Faucet ,eets ASME A112.18.1/CSA B125.1, NSF 61 and NSF 372 and features a 0.5 GPM flow rate.

  • Features a solid, Low lead brass construction
  • 0.5 gpm flow rate
  • 4 In. Wrist Blade Handles
  • Fixed or swivel spout
  • Two hole installation
  • Meets ASME A112.18.1/CSA B125.1, NSF 372 and NSF 61
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome
Flow rate

0.5 GPM
Length

12.0
Collection

Product style

Commercial
Number of holes

Faucet type

Centerset
Installation type

Counter Mounted
  • Activation type: Rotate Handle
  • Assembly required: Yes
  • Connection size: 1/2 In.
  • Connection type: Compression
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet center measurement: 4
  • Faucet handle style: Wrist Blades
  • Faucet operation: Manual
  • Flow type: Aerated
  • For use with: Repair Part RPG04-0316-PC 4" wrist blade handles & indexes
  • Handle location: Side
  • Handles included: Yes
  • Integral stops: No
  • Massage feature: No
  • Material composition: Brass
  • Number of faucet handles: 2
  • Pause control: No
  • Power source: Manual
  • Products this item repairs: RPG04-0316-PC
  • Repair part: RPG04-0316-PC
  • Repair part for catalog: RPG04-0316-PC - Speakman Repair Part RPG04-0316-PC 4" wrist blade handles & indexes
  • Replacement item for: SC-3084-CA-BOLD
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: No
  • Shower arm included: No
  • Spout height in inches: 5.5
  • Spout length in inches: 3.75
  • Temperature limit control: No
  • Tools needed for assembly: Adjustable Wrench; Groove Joint Plier; Phillips Screwdriver; Thread Seal Tape
  • Type of spout: Rigid/Swivel
  • Valve included: Yes
  • Valve type: Ceramic
  • Vandal resistant: No
  • Weight: 3.75
  • Width: 8.0

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: Yes
  • CEC certified: Yes
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: Yes
  • Meets ARRA: No
  • NSF61 IAPMO certified: Yes
  • Consumer warranty: Limited Lifetime
  • Commercial warranty: 5 Year Limited
