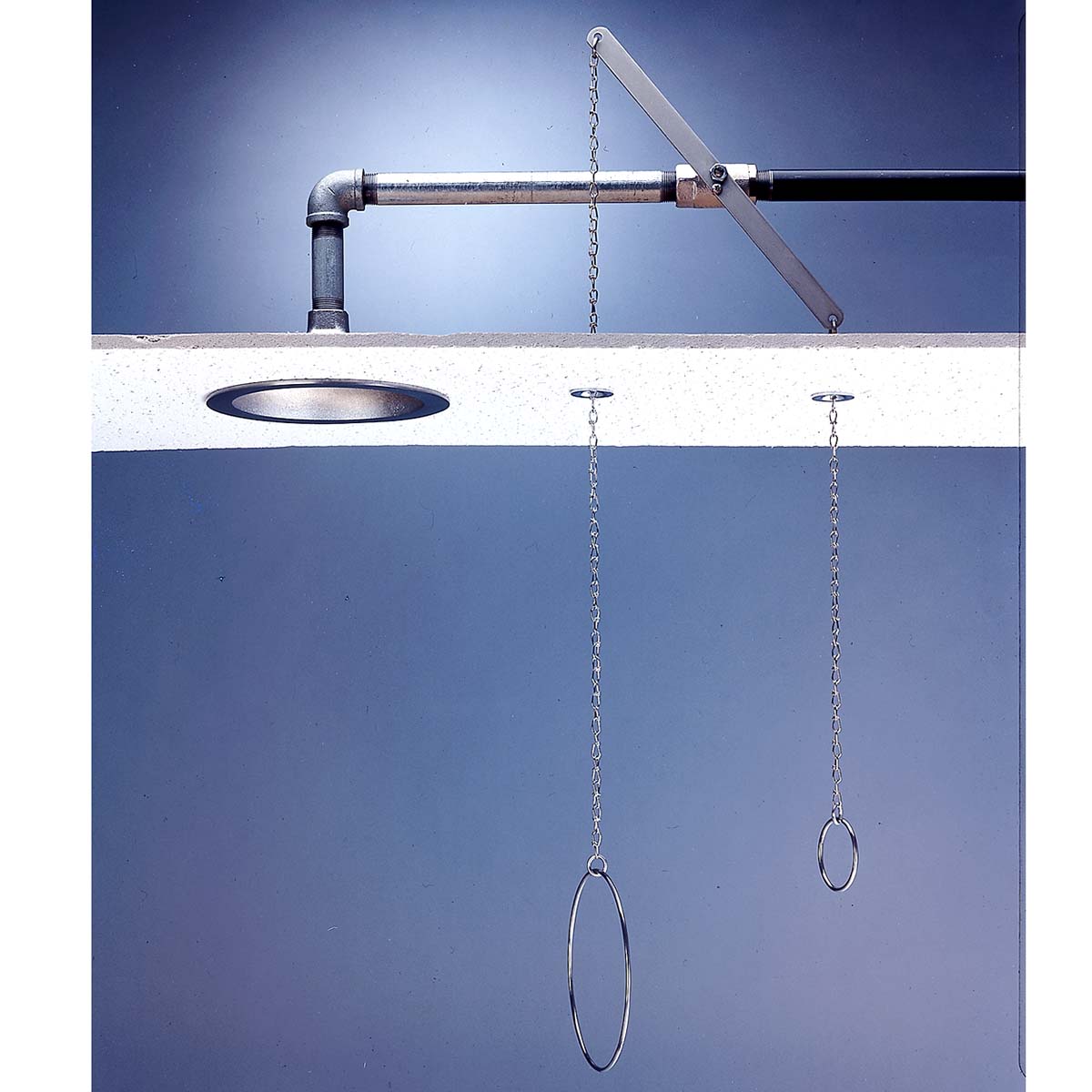

Lifesaver SE-236 Ceiling Mounted Deluge Shower with Chain & Ring

SKU SE-236 Categories , ,

Speakman Lifesaver emergency showers are designed to provide superior protection when emergencies arise. All Lifesaver deluge showers feature a high performance emergency shower head with integral flow control. The Speakman Lifesaver SE-236 Ceiling Mounted Deluge Shower with Chain & Ring is a concealed ceiling mounted emergency shower supplied with stay-open full flow ball valve which is activated by on/off pull rings with ceiling ferrules. The SE-236 meets ANSI/ISEA Z385.1 & OSHA compliance.

  • Flush-mounted shower head
  • Horizontal supply
  • Internal 20 gpm flow control
  • Features on-off pull-chain & rings
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome
Flow rate

20 GPM @ 30 PSI
Length

28.375
Collection

Product style

Industrial
Spray type

1
Installation type

Ceiling Mounted
Shower function

Single Function
  • Activation type: Pull Rod
  • Assembly required: No
  • Connection size: 1 In. NPT
  • Connection type: Threaded Pipe
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet handle style: Pull Rings
  • Flow type: Aerated
  • For use with: Lifesaver SE-830 10 In. Stainless Steel Shower Head
  • Galvanized location: Pipe & Fittings
  • Handle location: Wall Mounted Handle
  • Handles included: Yes
  • Integral stops: No
  • Massage feature: No
  • Material composition: Brass & Stainless Steel
  • Number of faucet handles: 2
  • Number of shower heads: 1
  • Pause control: No
  • Products this item repairs: SE-830
  • Repair part: SE-830
  • Repair part for catalog: SE-830 - Speakman Lifesaver SE-830 10 In. Stainless Steel Shower Head
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: Yes
  • Shower arm included: No
  • Shower head face diameter: 10.0
  • Shower head shape: Round
  • Temperature limit control: No
  • Tools needed for assembly: Adjustable Wrench; Pipe Wrench, Strap Wrench, Pipe Thread Sealant/Locker
  • Valve included: Yes
  • Valve type: Ball Valve
  • Vandal resistant: No
  • Weight: 15.5
  • Width: 10.62

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: No
  • ANSI Z358.1 IAPMO certified:Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • NSF61 IAPMO certified: No
  • Consumer warranty: 3 Year Limited
  • Commercial warranty: 3 Year Limited
