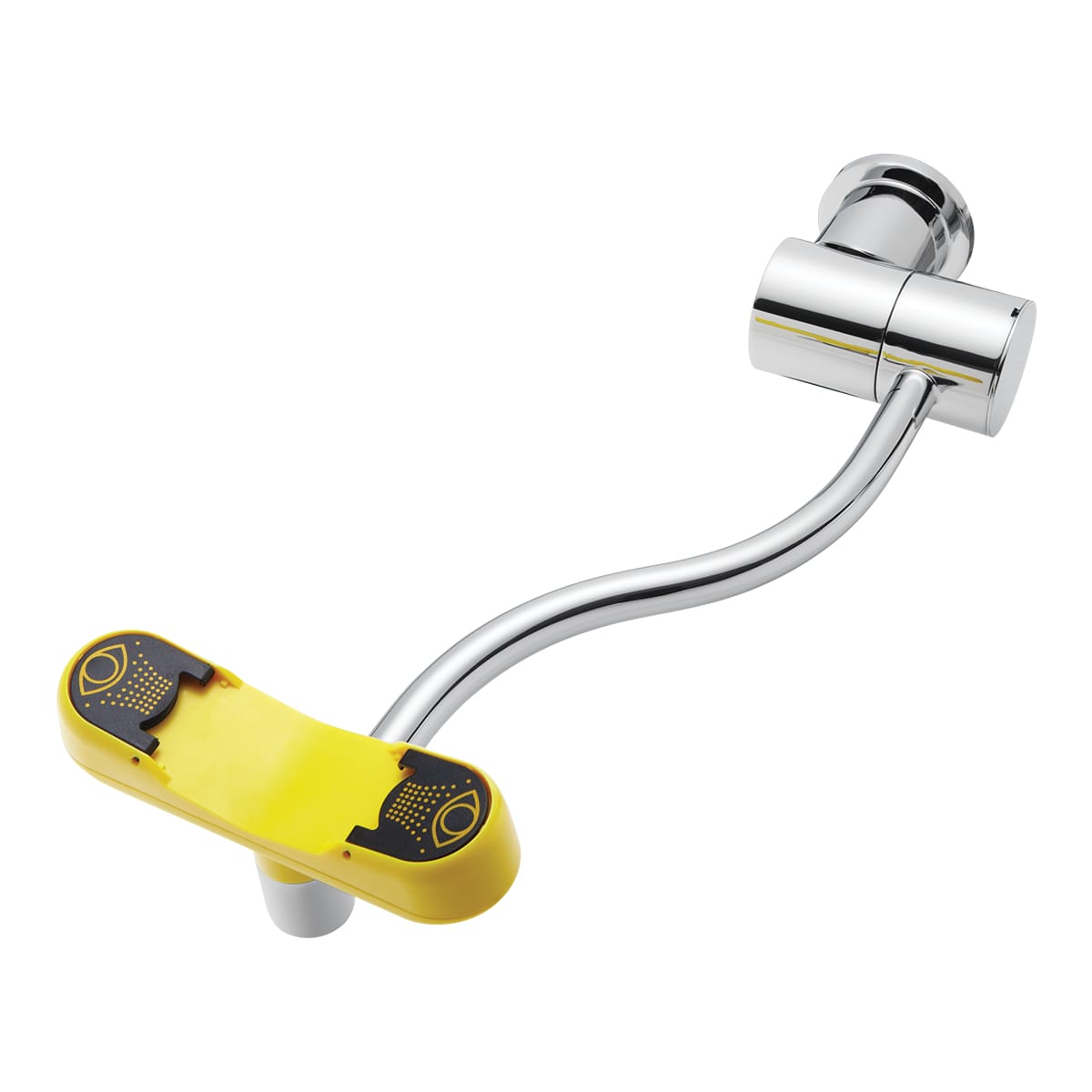

Optimus SE-577-SD Laboratory Wall-Mounted Eyewash

SKU SE-577-SD Categories , ,

The Speakman Optimus SE-577-SD Wall-Mounted Eyewash is the ideal emergency solution for the laboratory. Featuring a wall-mounted configuration with a 10-inch arm – this eyewash’s ergonomic design preserves valuable counter space and fits perfectly into any lab environment. This unit is equipped with our patented Optimus spray heads to deliver a comfortable, aerated experience. The Optimus Wall-Mounted Eyewash features a swing-down activation, making it incredibly easy and intuitive to operate. The SE-577-SD is 100% ANSI/ISEA Z358.1 Certified and has an extended arm that meets ADA requirement.

  • Equipped with signature Optimus aerated spray heads
  • Features an intuitive, swing-down activation
  • Ergonomic, space-saving design
  • ANSI/ISEA Z358.1 Certified
  • 2.6 GPM at 30 psi
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Polished Chrome
Flow rate

3.1 GPM @ 30 PSI
Length

14.0
Collection

Product style

Industrial
Installation type

Wall Mounted
  • Activation type: Swing
  • Assembly required: Yes
  • Connection size: 1/2" NPT Female
  • Connection type: Threaded Pipe
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Flow type: Aerated
  • For use with: Repair Part G20-1894-RCP Valve Assembly for SE-4000 & SE-577-SD
  • Handle location: Front
  • Handles included: No
  • Integral stops: No
  • Massage feature: No
  • Material composition: Stainless Steel, Brass, Plastic & Steel
  • Max deck thickness in inches: 2.5
  • Pause control: No
  • Power source: Manual
  • Products this item repairs: G20-1894-RCP
  • Repair part: G20-1894-RCP
  • Repair part for catalog: G20-1894-RCP - Speakman Repair Part G20-1894-RCP Valve Assembly for SE-4000 & SE-577-SD
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: Yes
  • Shower arm included: No
  • Temperature limit control: No
  • Tools needed for assembly: Pencil, Drill, Tape Measure, Level, Pipe Wrench, Crescent Wrench, Screwdriver, Thread Sealant, Mount
  • Valve included: Yes
  • Valve type: 1/4 turn ceramic
  • Vandal resistant: No
  • Weight: 4.2
  • Width: 8.0

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: No
  • ANSI Z358.1 IAPMO certified:Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • NSF61 IAPMO certified: No
  • Consumer warranty: 3 Year Limited
  • Commercial warranty: 3 Year Limited
