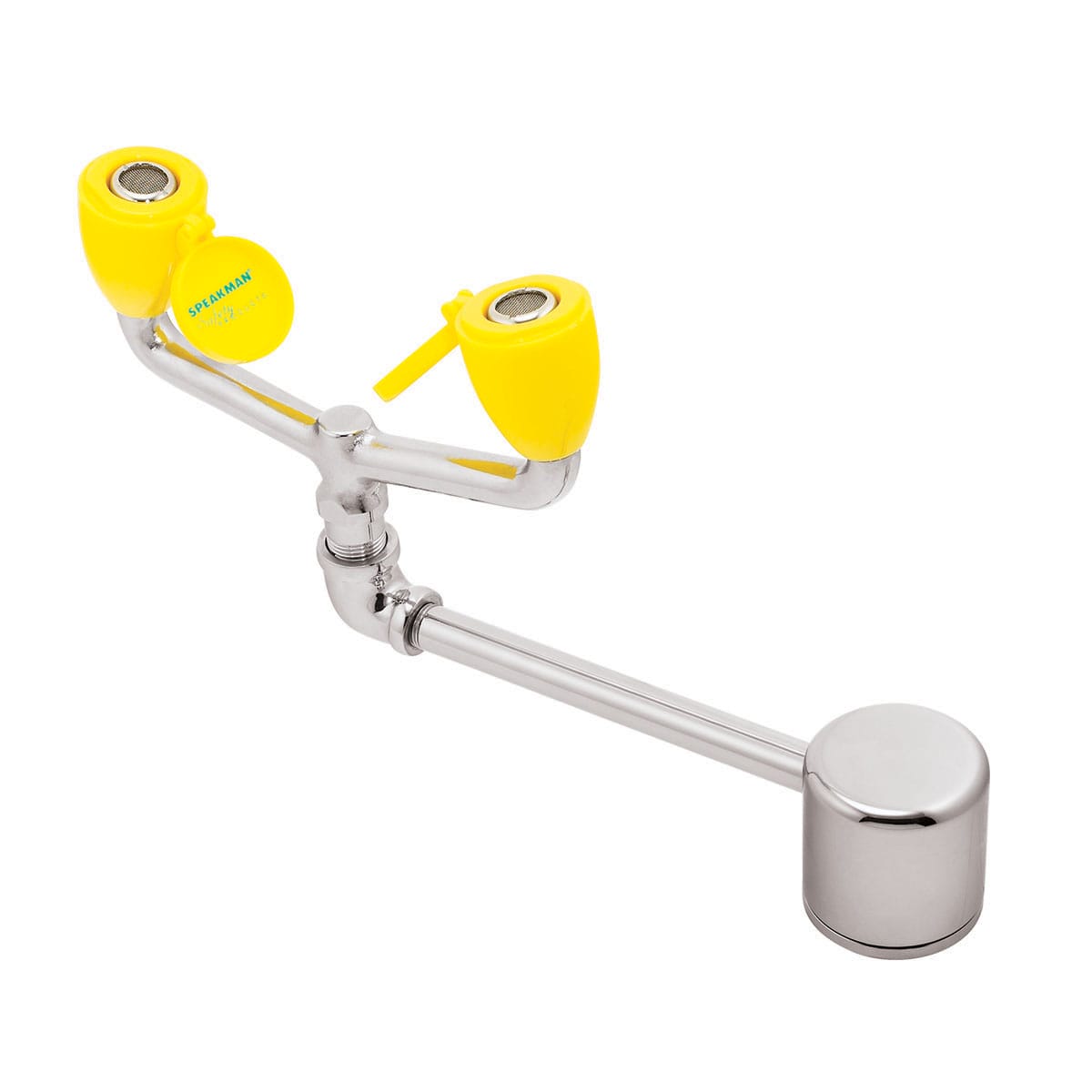

SE-570 Laboratory Counter Mounted Eyewash

SKU SE-570 Categories Emergency Eye Wash Stations, Safety

Speakman Laboratory products are designed to accommodate the needs of laboratories by offering a number of configurations ensuring the perfect fit for virtually any application by minimizing the space needed for emergency equipment while offering maximum safety protection. The Speakman SE-570 Laboratory Counter Mounted Eyewash is a swing activated emergency eye wash featuring aerated spray heads with flip-top dust covers with a built-in flow regulator. The unit is mountable to counter tops up to 2- 1/4 In. thick. The SE-570 includes a universal emergency sign and is compliant to the ANSI/ISEA Z358.1 standard.

Countertop mounted
Dual aerated spray heads with flip top caps
Swing activation
3.06 gpm at 30 psi

Features and Specifications

Additional information

Weight	67578171 kg
Dimensions	67594172 × 6723697 cm
Product finish	Polished Chrome
Flow rate	3.0 GPM @ 30 PSI
Length	2.4
Collection	Laboratory Products
Product style	Industrial
Installation type	Counter Mounted

Activation type: Swing
Assembly required: No
Connection size: 1/2" NPT Male
Connection type: NPT
Country of origin: Taiwan
Diverter included: No
Drain included: No
Escutcheon included: No
Flow type: Aerated
For use with: Repair Part G20-1940-RCP 1/2" Volume Control Valve
Handles included: No
Integral stops: No
Massage feature: No
Material composition: Stainless Steel, Brass, Plastic & Steel
Pause control: No
Products this item repairs: G20-1940-RCP
Repair part: G20-1940-RCP
Repair part for catalog: G20-1940-RCP - Speakman Repair Part G20-1940-RCP Service Sink Vacuum Breaker
Rough-in valve template included: No
Scald guard included: No
Self-cleaning nozzles: Yes
Shower arm included: No
Temperature limit control: No
Tools needed for assembly: Drill, Tape Measure, Pipe Wrench, Crescent Wrench, Screwdriver, Thread Sealant, Mounting Hardware
Valve included: Yes
Valve type: Ceramic
Vandal resistant: No
Weight: 5.0
Width: 14.0
