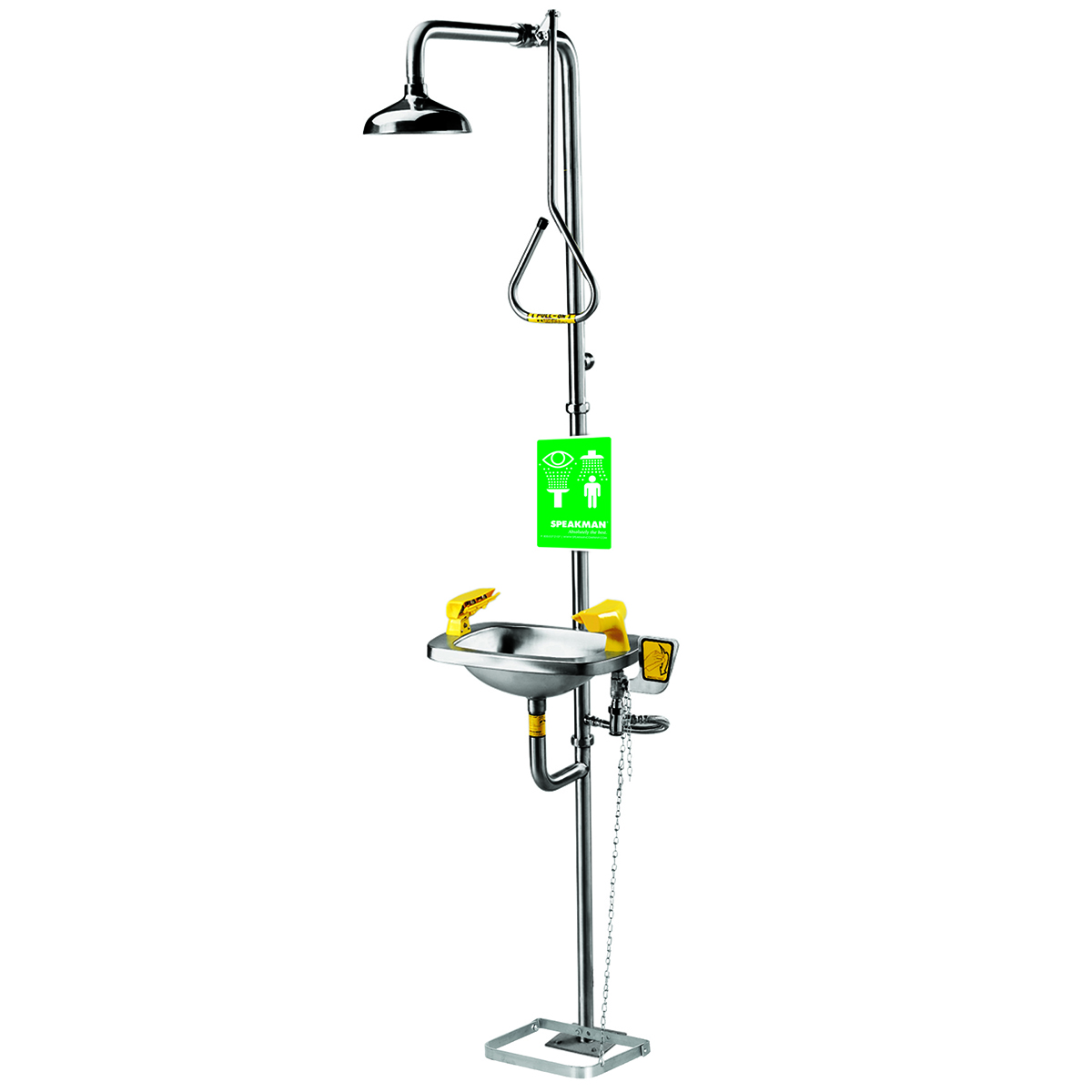

Select Series SE-623-HFO Combination Stainless Steel Emergency Shower with Stainless Steel Bowl Eye/face wash with Hand & Foot Activator

SKU SE-623-HFO Categories , ,

Speakman Traditional Series Combination Stainless Steel shower & eye/face wash units feature a combination eye/face wash with two aerated sprays and a round bowl combined on a stainless steel stanchion with a stainless steel high performance showerhead that is activated by a stainless steel pull rod. The combination shower is compliant to the ANSI/ISEA Z358.1 standard & OSHA.

  • Stainless steel 8-inch shower head
  • Stainless steel stanchion
  • Stainless Steel Pull-rod activated shower
  • ANSI/ISEA Z358.1 Certified
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Stainless Steel
Flow rate

20 GPM @ 30 PSI
Length

31.5
Collection

Product style

Industrial
Number of holes

Spray type

1
Installation type

Floor Mounted
Shower function

Single Function
  • Assembly required: No
  • Bowl material: Stainless Steel
  • Connection size: 1.25 In. NPT
  • Connection type: Threaded Pipe
  • Country of origin: United States
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet handle style: Pull Rod, Paddle, and Foot Pedal
  • Flow type: Aerated
  • Handle location: Front and Side
  • Handles included: Yes
  • Integral stops: No
  • Massage feature: No
  • Material composition: Brass & Stainless Steel
  • Number of faucet handles: 3
  • Number of shower heads: 1
  • Pause control: No
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: Yes
  • Shower arm included: No
  • Shower head face diameter: 8.0
  • Shower head shape: Round
  • Temperature limit control: No
  • Tools needed for assembly: Adjustable Wrench; Pipe Wrench, Strap Wrench, Pipe Thread Sealant/Locker
  • Valve included: Yes
  • Valve type: Ball Valve
  • Vandal resistant: No
  • Weight: 32.5
  • Width: 14.88

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: No
  • ANSI Z358.1 IAPMO certified:Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: Yes
  • NSF61 IAPMO certified: No
  • Consumer warranty: 3 Year Limited
  • Commercial warranty: 3 Year Limited
