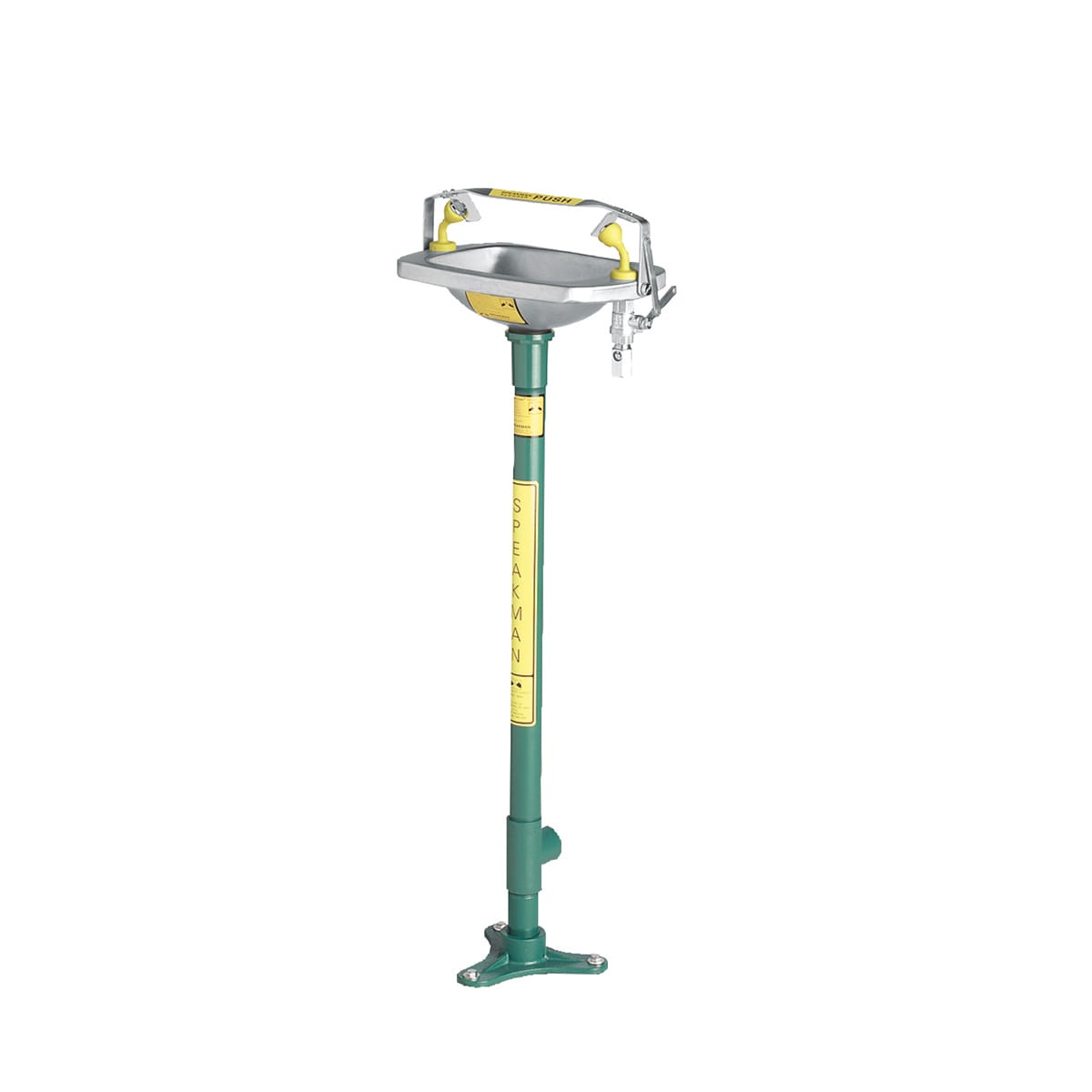

Select Series SE-545 Pedestal Mounted Eyewash with Stainless Steel Bowl

SKU SE-545 Categories , ,

Speakman Select Series emergency eye washes feature a unique panic bar activator on top of the unit, making them easy to find and allows for either right or left hand activation. The soft aerated sprays allow users to comfortably flush their eyes for the ANSI recommended 15 minutes. The Speakman Select Series SE-545 Pedestal Mounted Eyewash with Stainless Steel Bowl is compliant to the ANSI/ISEA Z358.1 standard.

  • Pedestal mount installation
  • Dual aerated spray heads
  • Rectangular stainless steel bowl
  • Trigger bar activation
  • 3.0 gpm at 30 psi
Request a Quote or Sample

Additional information

Weight 67578171 kg
Dimensions 67594172 × 6723697 cm
Product finish

Stainless Steel
Flow rate

2.8 GPM @ 30 PSI
Length

8.75
Collection

Product style

Industrial
Installation type

Floor Mounted
  • Activation type: Push
  • Assembly required: No
  • Bowl material: Stainless Steel
  • Connection size: 1/2" NPT FEMALE (INLET) 1-1/4" NPT FEMALE (DRAIN)
  • Connection type: Threaded Pipe
  • Country of origin: China
  • Diverter included: No
  • Drain included: No
  • Escutcheon included: No
  • Faucet handle style: Trigger Bar
  • Flow type: Aerated
  • For use with: Repair Part G74-0018-PNT 1-1/4 In. Pipe Stand for Eye/face Wash
  • Handle location: Top
  • Handles included: Yes
  • Integral stops: No
  • Massage feature: No
  • Material composition: Stainless Steel, Brass, Plastic & Steel
  • Number of faucet handles: 1
  • Pause control: No
  • Products this item repairs: G74-0018-PNT
  • Repair part: G74-0018-PNT
  • Repair part for catalog: G74-0018-PNT - Speakman Repair Part G74-0018-PNT 1-1/4 In. Pipe Stand for Eye/face Wash
  • Rough-in valve template included: No
  • Scald guard included: No
  • Self-cleaning nozzles: Yes
  • Shower arm included: No
  • Temperature limit control: No
  • Tools needed for assembly: Pencil, Drill, Tape Measure, Level, Pipe Wrench, Crescent Wrench, Screwdriver, Thread Sealant, Mount
  • Valve included: Yes
  • Valve type: Ball Valve
  • Vandal resistant: No
  • Weight: 20.5
  • Width: 14.0

Instruction manual

Spec Sheet

Sell Sheet

CAD file 1

CAD file 2

CAD file - Revit

CAD file - SketchUp

  • ADA compliant: No
  • ANSI Z358.1 IAPMO certified:Yes
  • ASME A112.181/CSA B125.1 IAPMO certified: No
  • IGC 272 IAPMO certified: No
  • Low lead law IAPMO certified: No
  • Meets ARRA: No
  • NSF61 IAPMO certified: No
  • Consumer warranty: 3 Year Limited
  • Commercial warranty: 3 Year Limited
