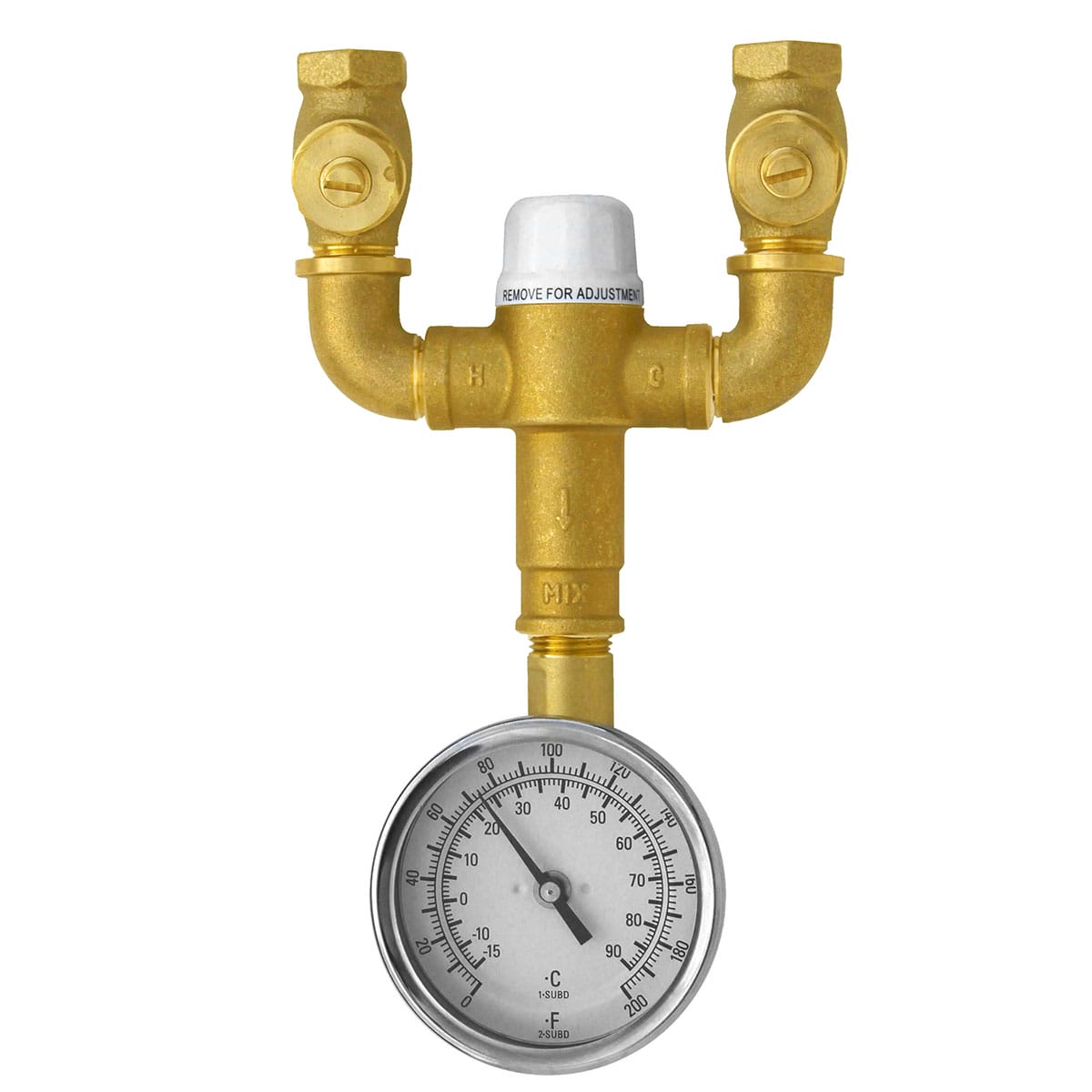

The Speakman Safe-T-Zone STW-370 Thermostatic Mixing Valve is a high-quality, cost-effective solution for supplying tepid water to your emergency eyewash. Featuring a 8.0 GPM flow capacity, this mixing valve supports most single eye or eye/facewash stations at 30 PSI. Every Safe-T-Zone Valve is preset to 85°F, but is equipped with an adjustable set point, allowing you to set a custom temperature limit ideal for your facility. The Safe-T-Zone Valve provides a 5.2 GPM cold water bypass in the event of hot water failure and includes a positive shut-off when the cold water supply is lost. The Speakman Safe-T-Zone is constructed entirely of brass and complies to ASSE 1071, CSA B125.3, NSA/ANSI 372 standards as well as being cUPC certified.
| Weight | 67578171 kg |
|---|---|
| Dimensions | 67594172 × 6723697 cm |
| Product finish | Rough Brass |
| Flow rate | 8 gpm |
| Length | 5.625 |
| Collection | |
| Product style | Industrial |
| Installation type | In-Line Mounted |
